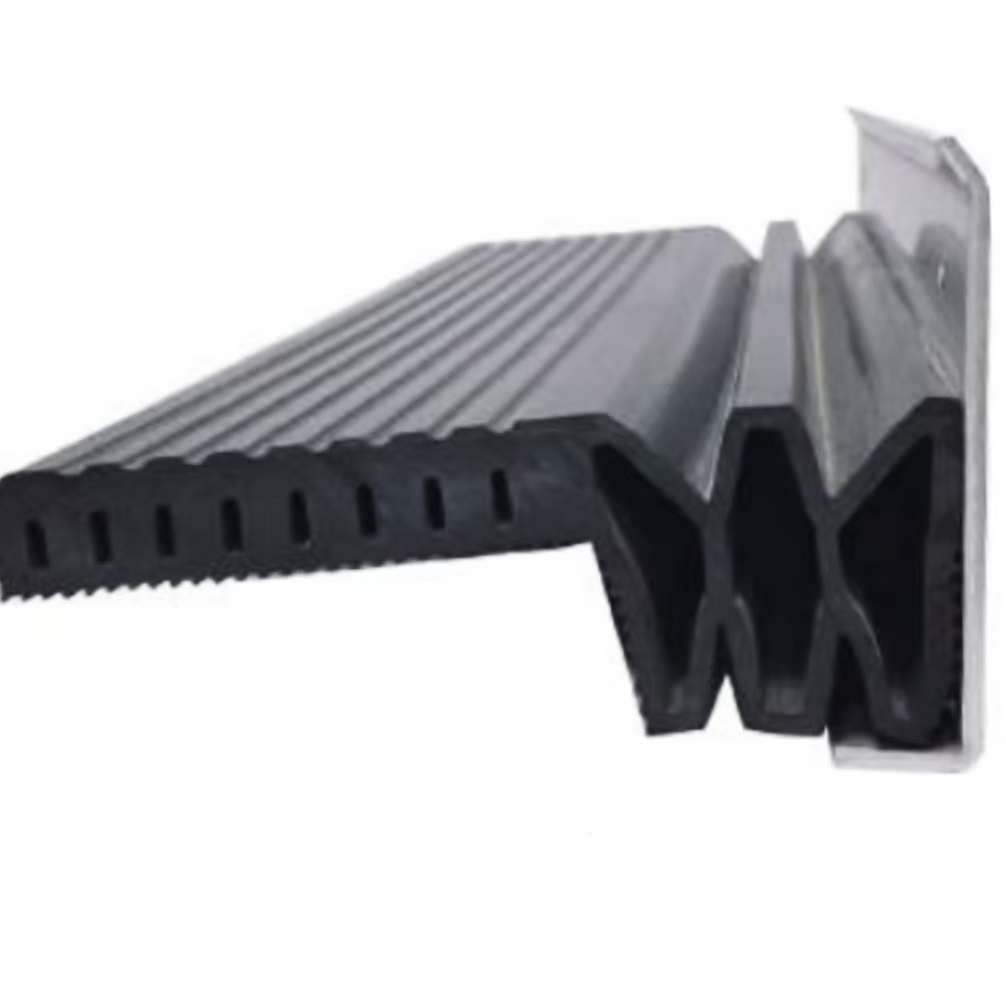

Heavy-Duty Parking Performance: Engineered specifically for car parking applications, with a robust compression EPDM seal that withstands constant vehicle loads.
100% Watertight Compression Seal: The EPDM gasket compresses under pressure to form a reliable, long-lasting water barrier - keeping parking decks and structures dry.
All-Rubber, Screw-Free Design: No metal fasteners or exposed hardware. The monolithic rubber profile eliminates corrosion risks and creates a clean, uninterrupted look.
✅ Factory Direct – No Middleman
✅ Heavy-Duty, EPDM Sealed
✅ Custom-Engineered for Your Site
✅ Since 2010 – Trusted for Over a Decade
✅ Global Exporter – Serving 30+ Countries Across EU, Asia & ME
Our engineers typically respond within 2 hours
| Availability: | |
|---|---|
| Quantity: | |
MSD-QR
Recessed Mounted
Free
Optional
Yes
Private Car
Malls/Airports/Hospitals/Industrial/ Parking/Walkways
50-100mm
133-182mm
50-100mm
Floor to Wall
Rubber

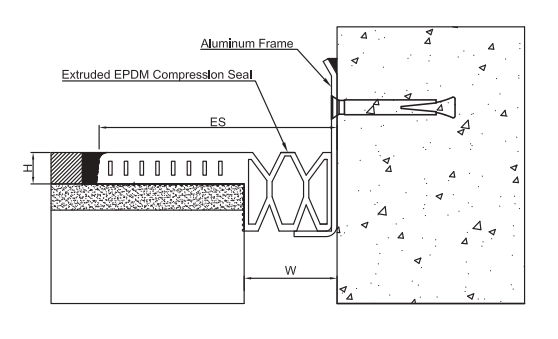

| MSD-QR | ||
| Joint Width(W)(mm) | 50 | 100 |
| Exposed Surface(ES)(mm) | 133 | 182 |
| Movement Capacity(mm) | 50 | 100 |
