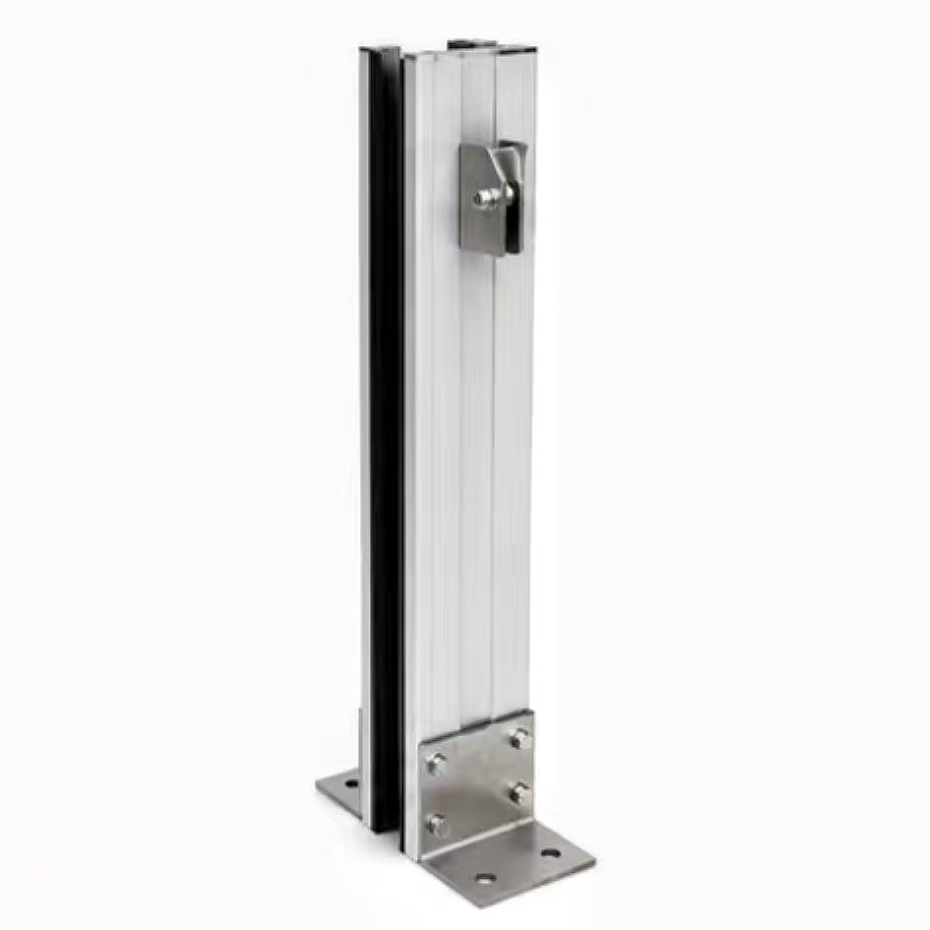

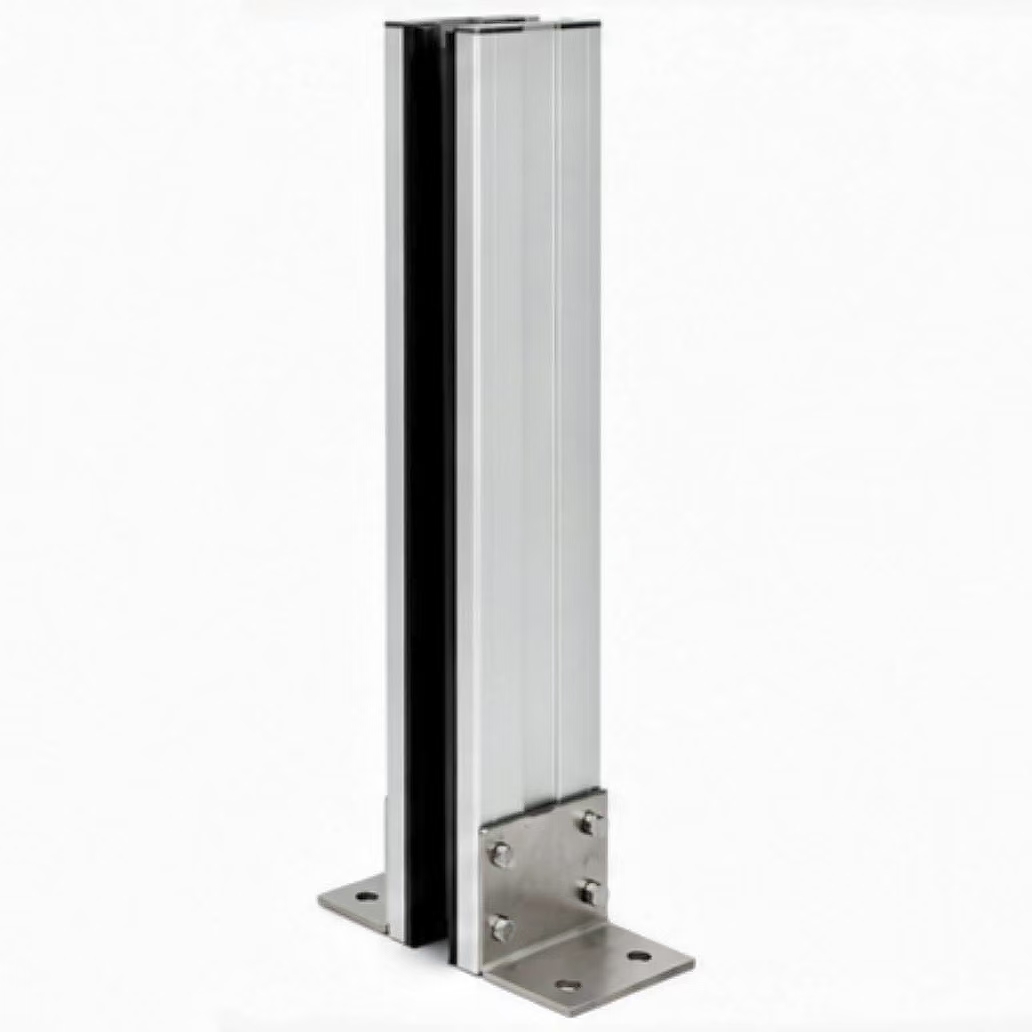

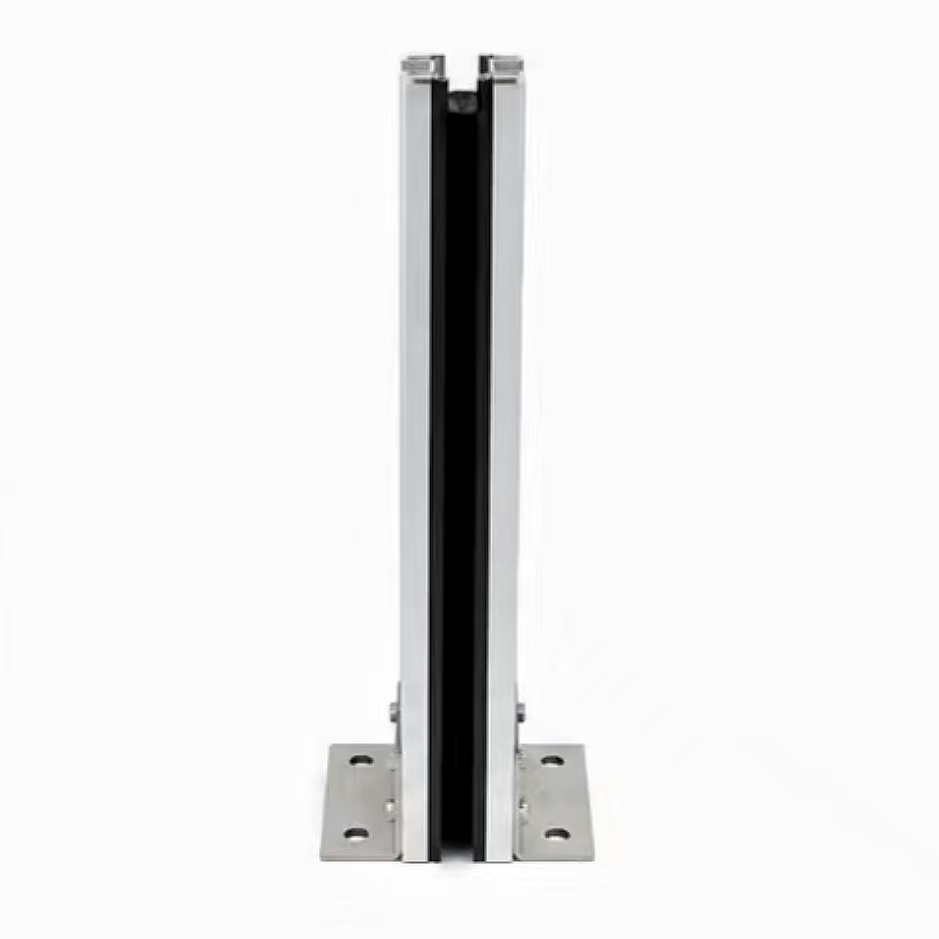

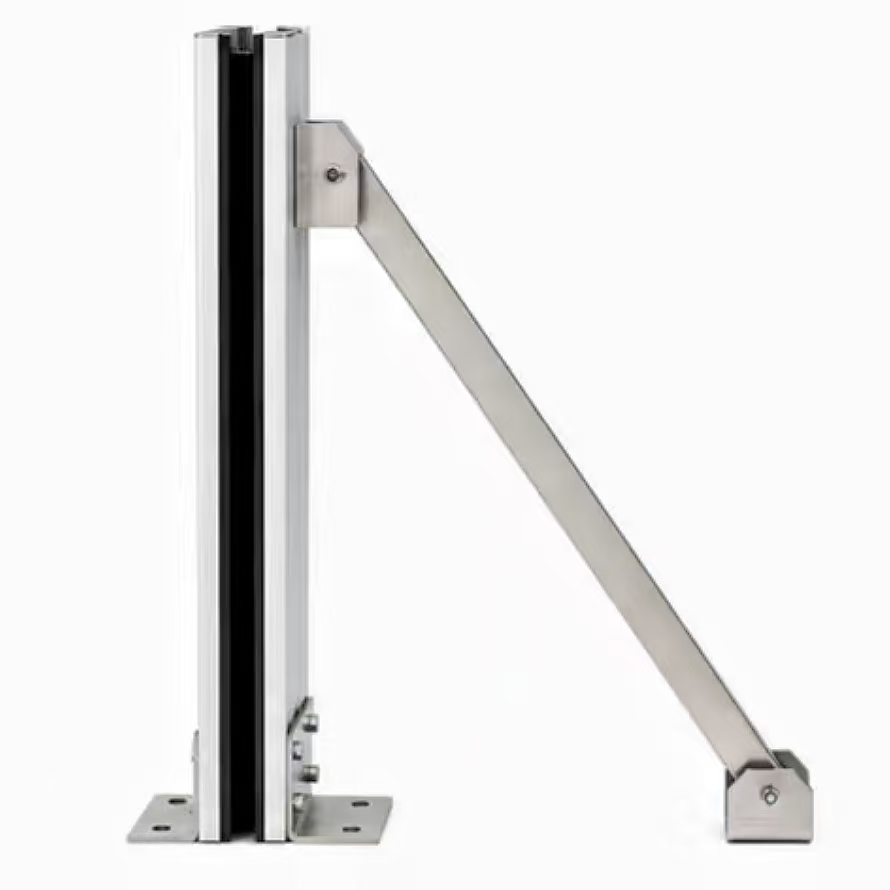

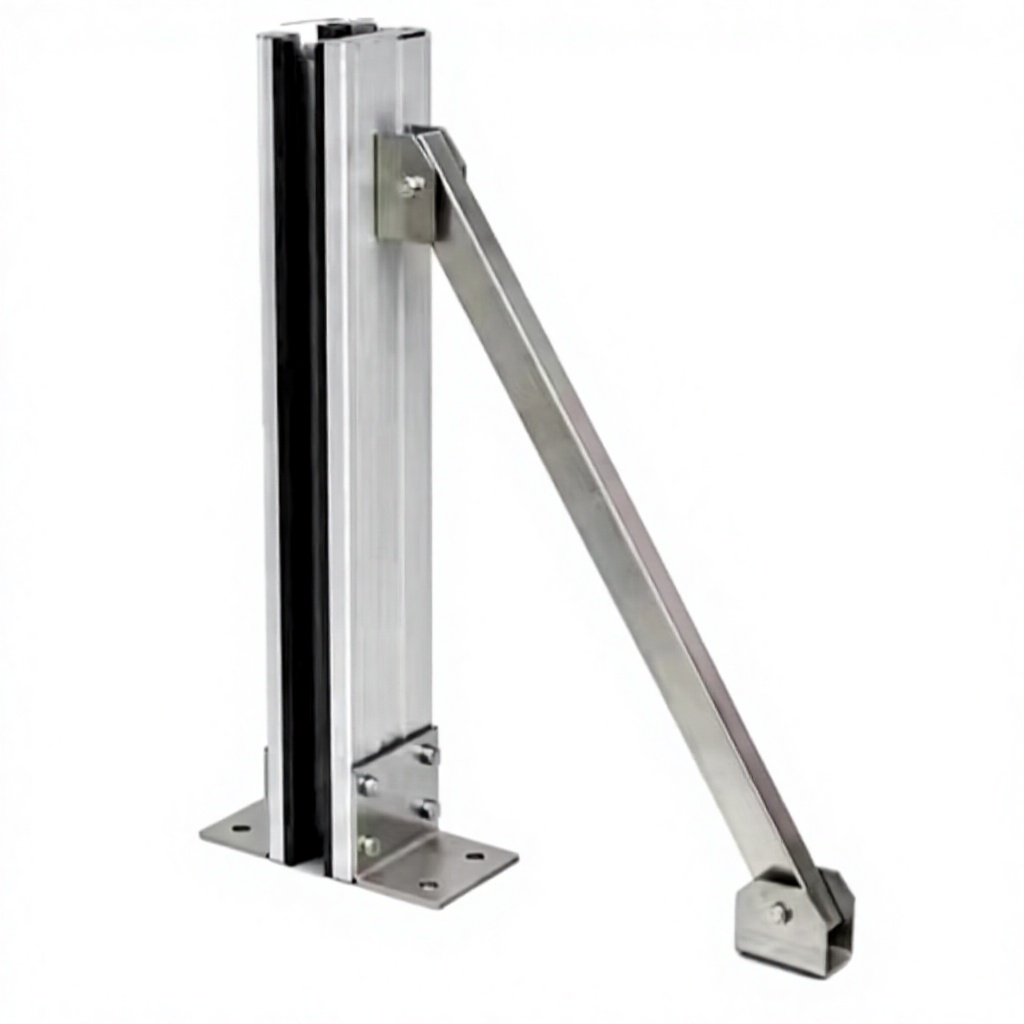

Aluminum Flood Barrier Intermediate Post

[ 1 ] Installation Steps

1. Determine post positions and measure.

2. Drill holes with a hammer drill, then bolt U‑channel posts permanently on both sides.

3. Insert panels, stack to height, and secure with the included Allen wrench.

[ 2 ] Installation Methods

• Side Wall Mount: Posts are mounted on the side walls of the opening. Minimum wall depth: d≥10cm. Ideal for standard doorways.

• Face Wall Mount: Posts are mounted on the face of the wall around the opening. Minimum wall thickness: d≥10cm. Suitable for flush mounting applications.

• Corner Mount: Posts are anchored to both the face and side walls for enhanced stability. Provides a flexible solution for complex architectural layouts.

[ 3 ] Pro Tips

• Permanently Installed Posts: Once mounted, posts remain in place year‑round for immediate deployment.

• Flexible Mounting Choices: Select the method best suited to your wall configuration and flood risk.

• In‑Ground Anchors Available: Optional anchors can be installed for center or corner post support in wider openings.
