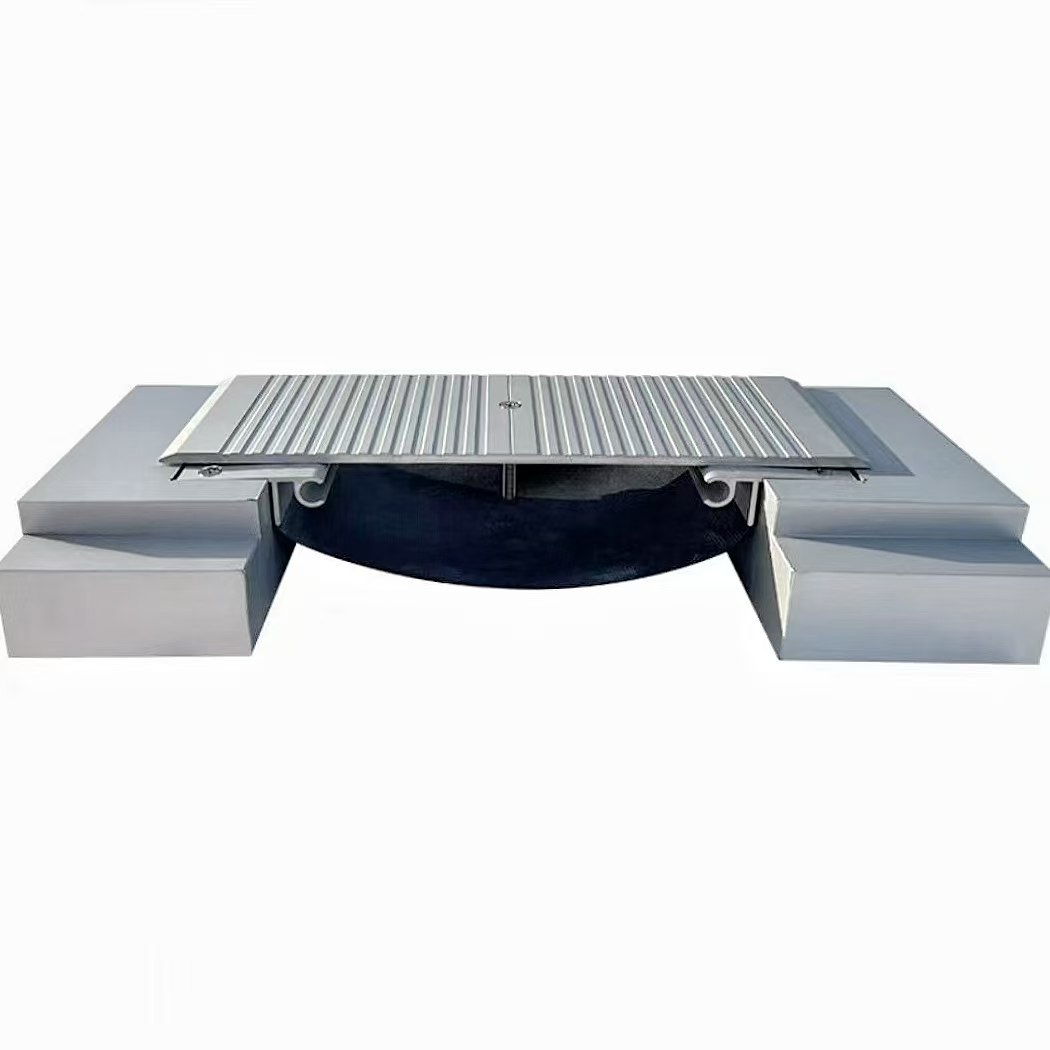

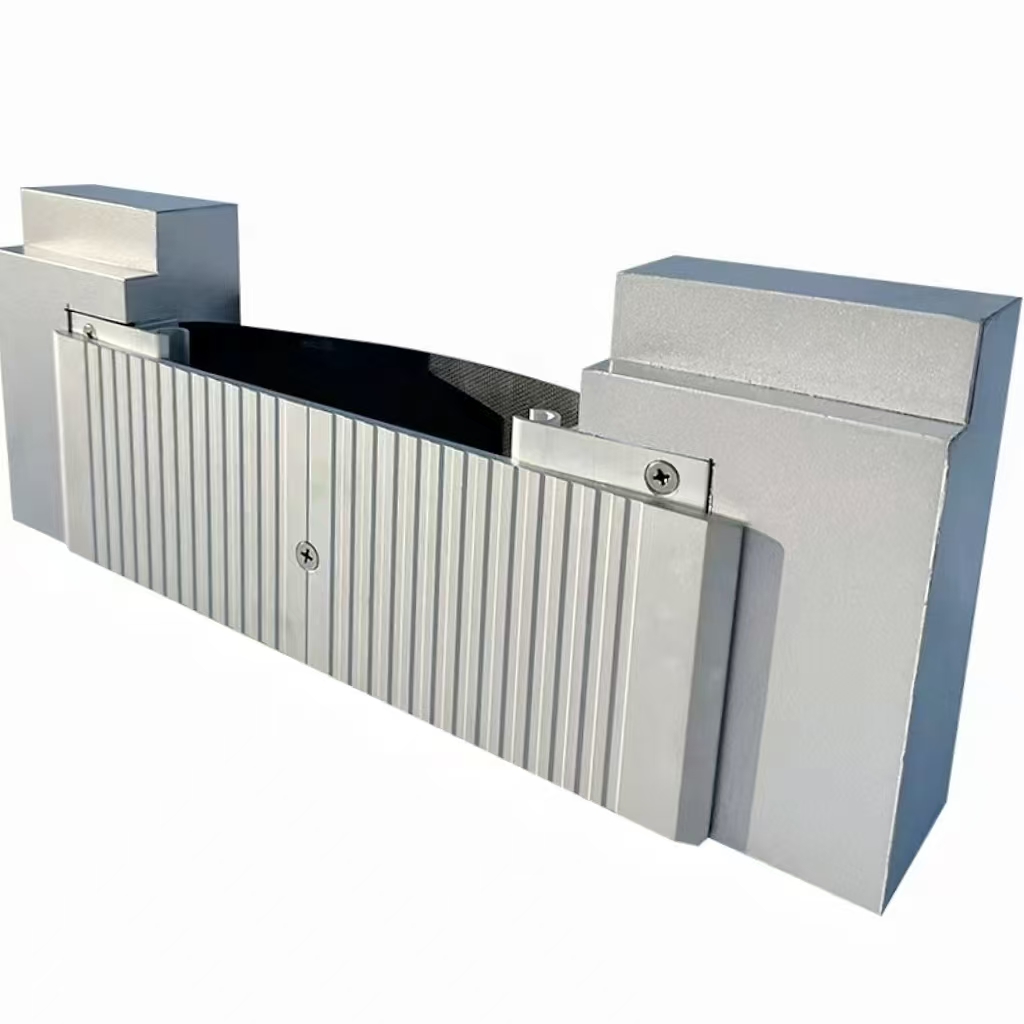

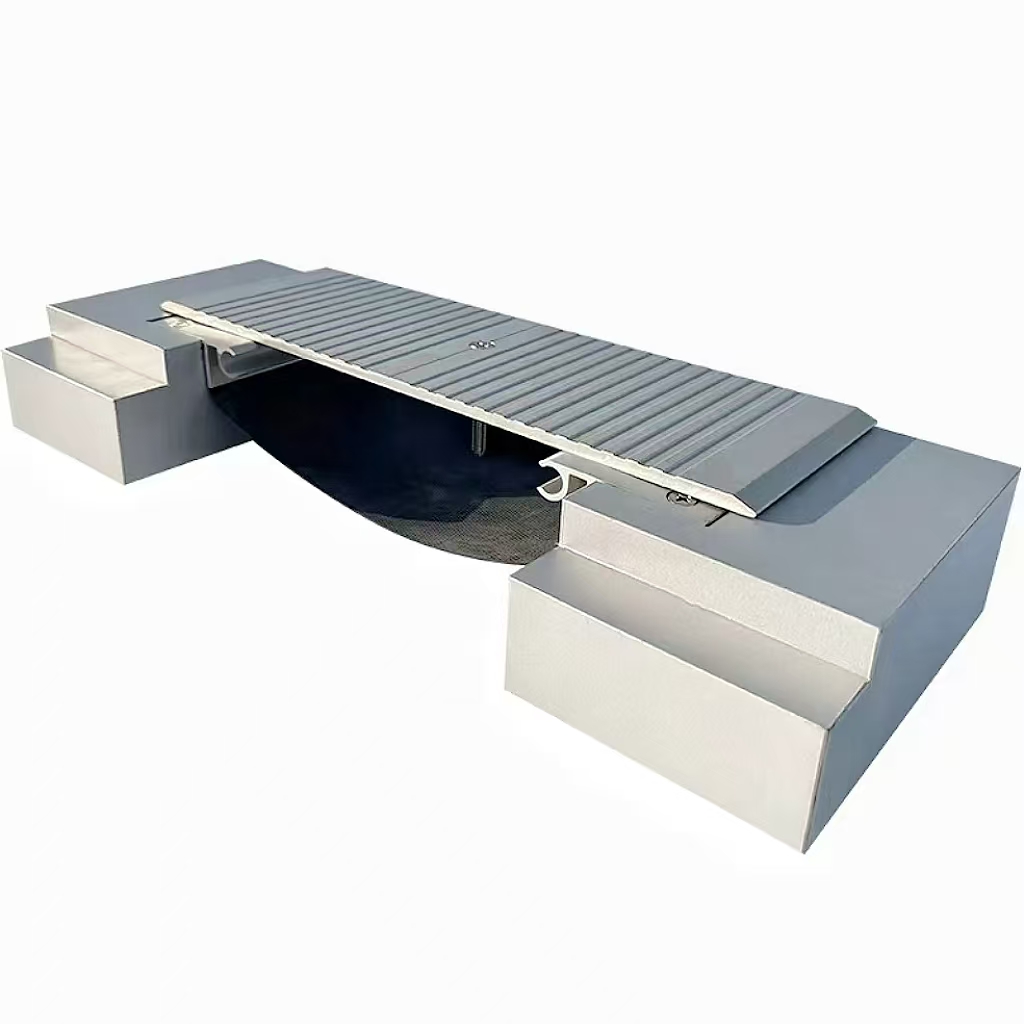

Architectural Floor Expansion Joint Covers MSDGJ

Advantages
Variety of finishes: Available in multiple surface treatments such as polished or painted finishes. Can be coordinated with stone, tile, and other surrounding floor finishes for a cohesive appearance.
Easy installation: Highly prefabricated design allows for fast on-site assembly.
Simple maintenance: Cover plates can be lifted or removed for easy cleaning of debris inside the expansion gap. Daily cleaning requires only wiping the surface.
Limitations
High requirements for flatness: Demands strict control of substrate flatness. Poor alignment may result in height differences between the cover plate and surrounding floor, affecting safety and aesthetics.
Our engineers typically respond within 2 hours
Availability:
Quantity:
Inquire

  • MSDGJ

  • Surface Mounted

  • Free

  • Optional

  • Yes

  • Pedestrian

  • Malls/Airports/Hospitals/Industrial/ Parking/Walkways

  • 100-200mm

  • 200-300mm

  • 170-270mm

  • Floor to Floor

  • Aluminum Alloy, Rubber

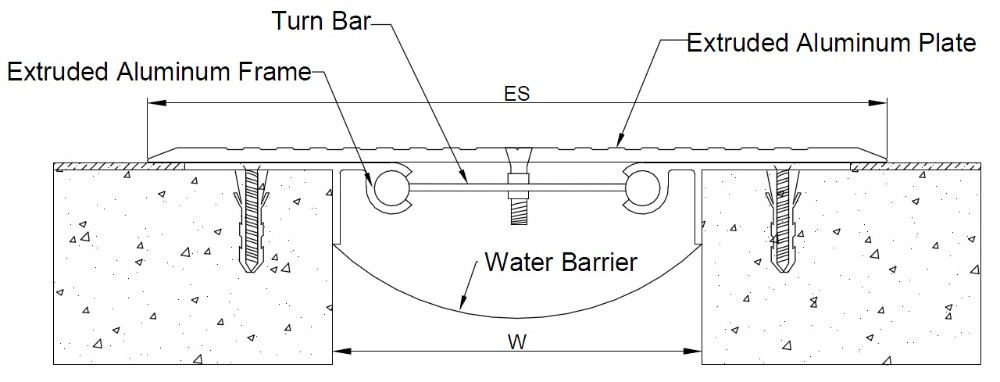

MSDGJ (2)

MSDGJ
Joint Width(W)(mm) 100 150 200
Exposed Surface(ES)(mm) 200 250 300
Movement Capacity(mm) 170 220 270


QQtupian20注: 建议上传图片大小690px*460px
  • CE & ISO 9001
  • ASTM 6063 T5
  • ASTM D 2047
  • ASTM D412
  • ASTM D573
  • ASTM D624
  • ASTM D1415
  • ASTM E1966
  • Loading Test
  • ASTM B221
  • ASTM E1399
  • ASTM E119

IMG_3360(1)IMG_4293(1)_2766_2766IMG_0620（1）IMG_7826(1)(1)

Related Products

High-Load Floor Expansion Joint Covers MSD-QKC
High-Load Floor Expansion Joint Covers MSD-QKC
Flush Locking Floor Expansion Joint Covers MSDYH
Flush Locking Floor Expansion Joint Covers MSDYH
Heavy-Duty Center-Supported Expansion Joint Covers MSDKC
Heavy-Duty Center-Supported Expansion Joint Covers MSDKC
Articulated Center Hinge Expansion Joint Covers MSD-QYH
Articulated Center Hinge Expansion Joint Covers MSD-QYH

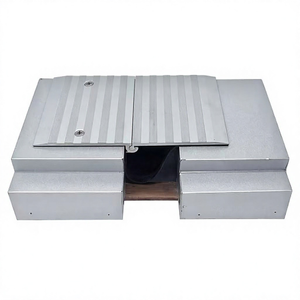

Fire-Rated Lock Metal Expansion Joint Covers MSDYH-2
Fire-Rated Lock Metal Expansion Joint Covers MSDYH-2

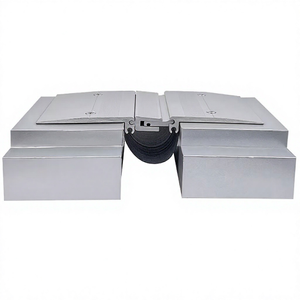

Lock-Down Floor Expansion Joint Covers MSDYH-1
