Advantages
Flush, aesthetic finish: After installation, only two rubber strips are visible on the floor, blending harmoniously with surrounding finishes.
Adaptable to various joint widths
Seismic & vibration control option: Can be configured with seismic-resistant and shock-absorbing features for earthquake‑prone areas.
Limitations
Limited movement capacity: When the rubber strips are compressed or stretched, they may bulge or sink, creating an uneven surface that detracts from appearance. This effect becomes more pronounced with wider strips required for larger movements.
Lower durability than metal: Rubber strips have a shorter service life and typically need replacement after a few years of use.
Our engineers typically respond within 2 hours
| Quantity: | |
|---|---|
MSD-QSZJ
Recessed Mounted
Optional
Yes
Pedestrian
Free
Malls/Airports/Hospitals/Industrial/ Parking/Walkways
Yes
75-500mm
215-640mm
50mm
Aluminum Alloy, Rubber
Floor to Wall

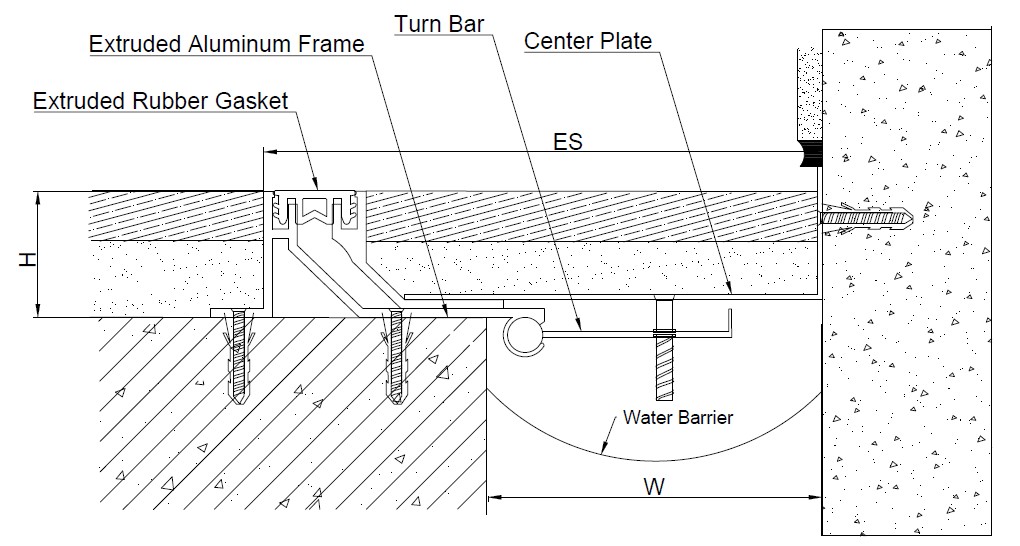

| MSD-QSZJ | ||||||||||
| Joint Width(W)(mm) | 75 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 |
| Exposed Surface(ES)(mm) | 145 | 170 | 220 | 270 | 320 | 370 | 420 | 470 | 520 | 570 |
| Movement Capacity(mm) | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Width of Plate(mm) | 95 | 120 | 170 | 220 | 270 | 320 | 370 | 420 | 470 | 520 |
| Thickness of Plate(mm) | 1.5 | 1.5 | 2 | 2 | 3 | 3 | 3 | 5 | 5 | 5 |
