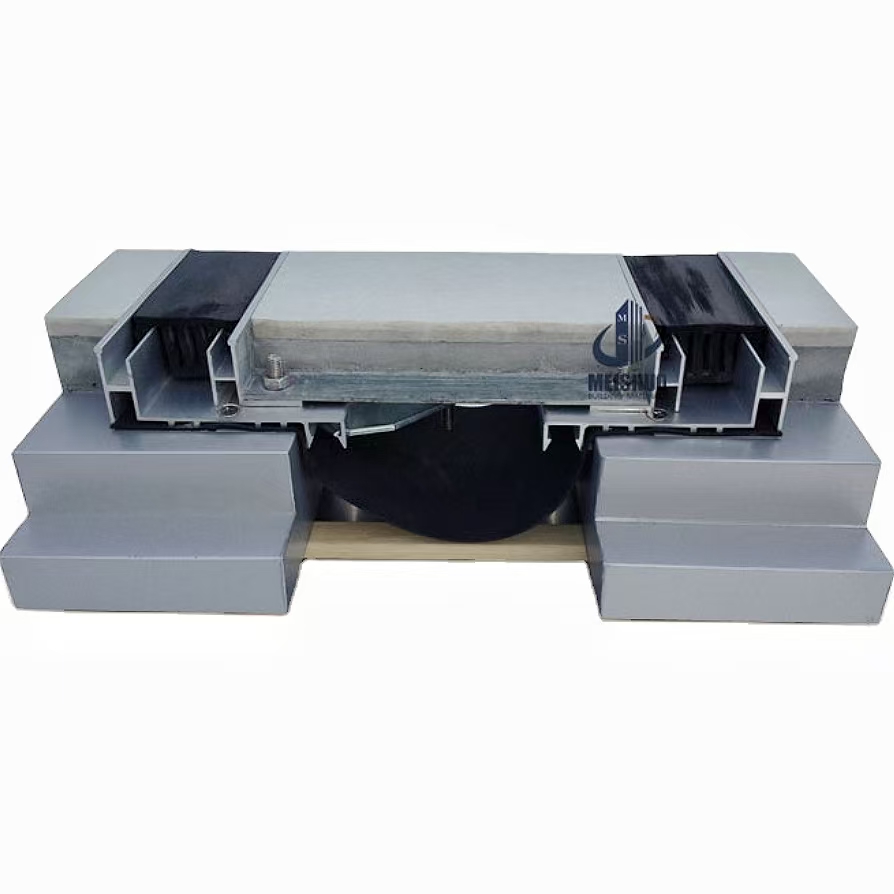

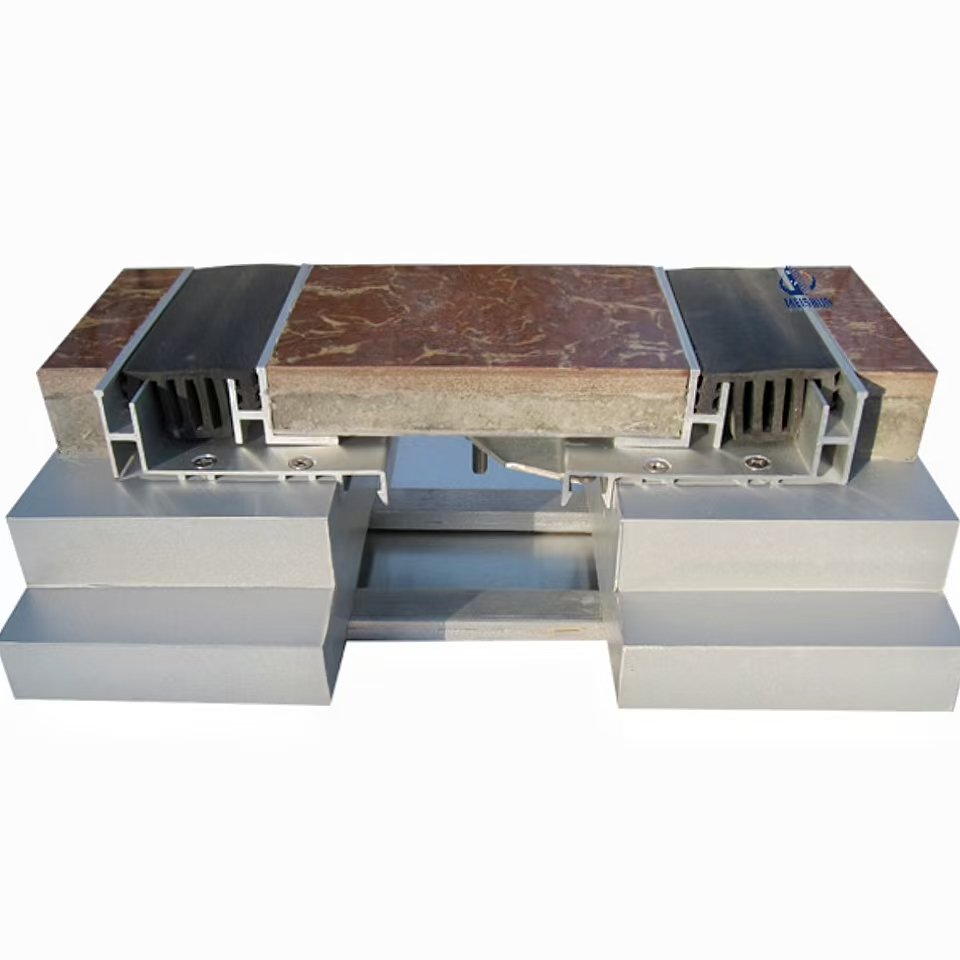

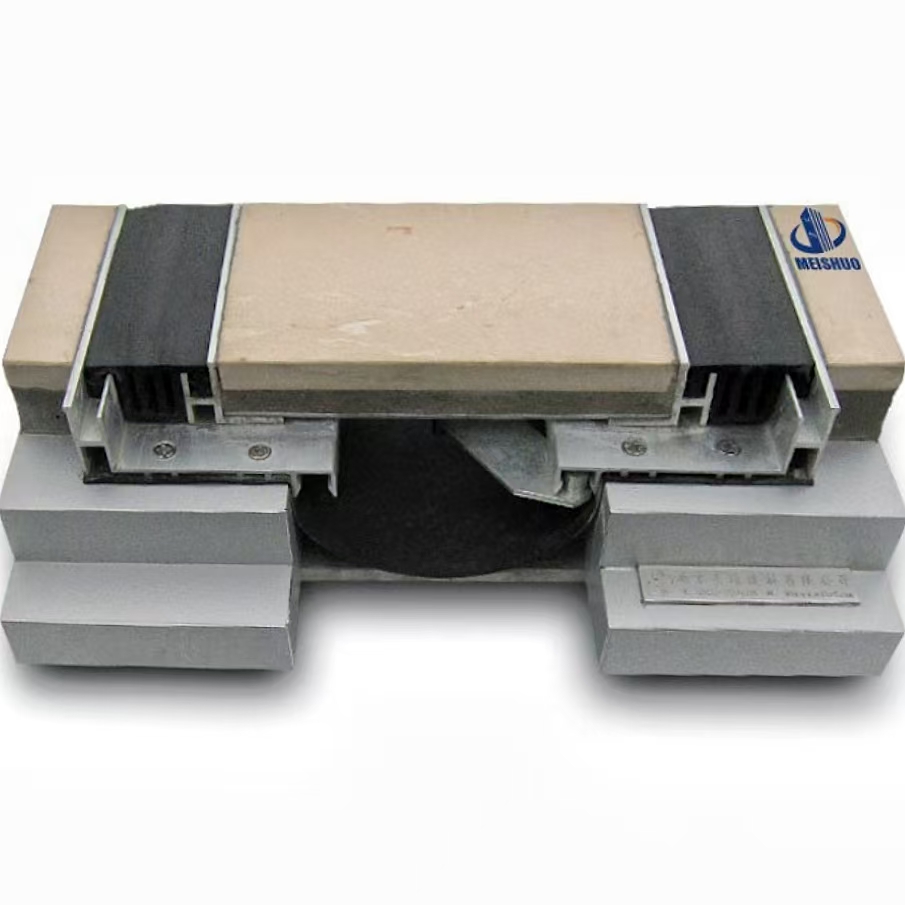

Expansion Joints with Rubber Strips MSDSJH

Advantages
Cost-Effective Across Joint Widths: Cost increases only marginally with wider joints, delivering exceptional value for money across a broad range of gap sizes.
Centering Bar System for Reliable Alignment: Integrated centering bar maintains consistent joint spacing and smooth movement accommodation over the long term.
Dual Seal Design with Ample Movement Range: Double gasket system ensures necessary expansion and contraction capacity while preserving structural integrity.
Snap-Fit Assembly for Fast On-Site Installation: Tool-free snap-fit mechanism speeds up assembly, reducing labor time and simplifying the installation process.
Multi-Finish Compatibility: After installation, only two subtle rubber strips remain visible. Ideal for carpet, vinyl, ceramic tile, and other common floor finishes.
Limitations
Limited movement capacity: When the rubber strips are compressed or stretched, they may bulge or sink, creating an uneven surface that detracts from appearance. This effect becomes more pronounced with wider strips required for larger movements.
Lower durability than metal: Rubber strips have a shorter service life and typically need replacement after a few years of use.
Our engineers typically respond within 2 hours
Availability:
Quantity:
  • MSDSJH

  • Recessed Mounted

  • Free

  • Optional

  • Yes

  • Pedestrian

  • Malls/Airports/Hospitals/Industrial/ Parking/Walkways

  • 100-300mm

  • 280-480mm

  • 25mm

  • Floor to Floor

  • Aluminum Alloy, Rubber

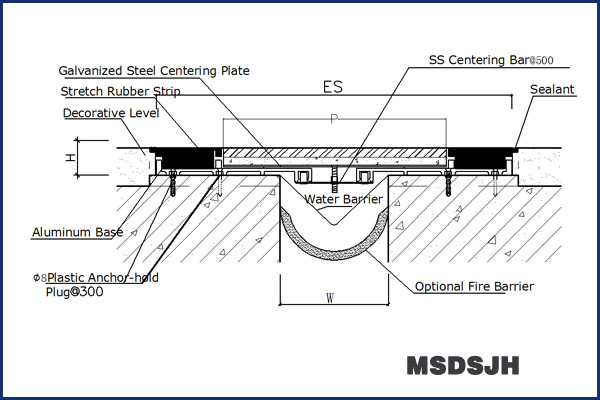

photobank(1)

MSDSJH
Joint Width(W)(mm) 100 150 200
300
Exposed Surface(ES)(mm)
280 330 380 480
Movement Capacity(mm) 25 25 25 25


IMG_7823(1)IMG_9634(1)深圳机场T3(1)IMG_4301(1)
