Fire Barrier Installation Mistakes That Compromise Fire Ratings — and How to Avoid Them

A fire-rated floor or wall assembly is only as strong as its weakest point. In many buildings, that point is the expansion joint. When fire breaks out, this gap becomes a ready pathway for flames, heat, and toxic smoke to travel between compartments, bypassing the very barriers meant to contain them.

The solution is a fire barrier system installed within the joint. But here is the uncomfortable truth: even a correctly specified fire barrier can fail if installed improperly. In our experience supporting contractors and specifiers worldwide, MEISHUO has observed that installation errors — not product defects — are the leading cause of compromised fire ratings in expansion joint assemblies.

Below, we identify the most common installation mistakes and how to avoid them, so that your next project delivers the fire endurance it was designed for.

Mistake 1: Skipping the Fire Barrier Where It Is Required

The most fundamental error is omission. Wherever an expansion joint traverses a fire-rated floor or wall assembly, a fire barrier is mandatory — not optional — to maintain the continuity of the rated assembly. This is a code requirement, not a design preference. An unprotected joint creates a direct breach in the compartmentation strategy, allowing fire and smoke to bypass the rated barrier entirely.

Mistake 2: Assuming Fire Barrier Means Waterproof

This is one of the most common misunderstandings on construction sites, and it can lead to expensive remedial work. A fire barrier is not waterproof. Its function is to prevent the passage of flame, heat, and — when equipped with a smoke seal — smoke. It is not designed to resist water ingress. If the expansion joint is exposed to moisture — from rain, groundwater, or wet-service areas — a separate moisture barrier must be installed.

MEISHUO fire barrier systems are compatible with EPDM-based water barriers that can be installed alongside the fire blanket. The two systems serve entirely different functions, and one cannot substitute for the other. Specifying both where conditions require it is not redundancy; it is correct engineering.

Mistake 3: Using Fire Sealant Instead of a Mechanical Fire Barrier

Fire sealants and fire barriers serve different purposes, and confusing the two is a persistent problem on job sites. Fire sealants — typically silicone or acrylic-based products — are designed for small, static joints such as perimeter seals around pipes, conduits, or ductwork. They are not engineered to handle the dynamic, cyclical movement that expansion joints experience.

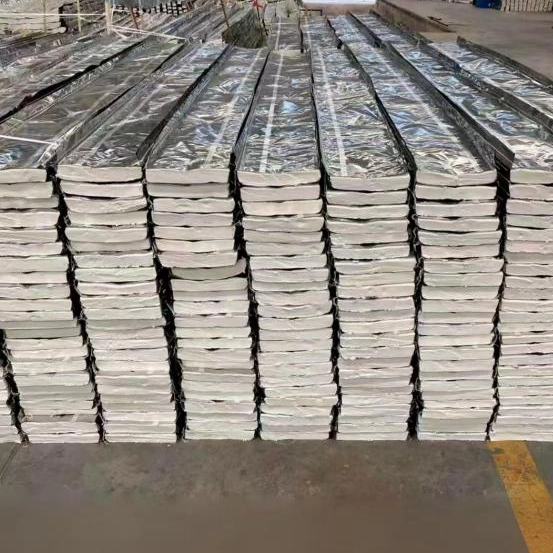

A mechanical fire barrier, by contrast, is a multi-layer assembly — in the case of MEISHUO's MSFB series, a combination of stainless steel foil, aluminum silicate fiber blanket, and galvanized mesh — that compresses and expands with the joint movement while maintaining its fire-stopping integrity.

The practical distinction: For expansion joints with widths beyond what a sealant can reliably span, and for any joint subject to repeated movement, specify a mechanical fire barrier. Sealant alone will crack, delaminate, or pull away from the substrate under these conditions, creating gaps that fire and smoke can exploit.

Mistake 4: Ignoring the Smoke Seal

A fire barrier that stops flames but not smoke is only doing half its job. In a building fire, toxic smoke inhalation — not direct flame contact — is the leading cause of fatalities. Smoke travels faster than fire, seeping through even hairline gaps that flames cannot penetrate.

This is why a proper fire barrier system incorporates a smoke seal — an integrated membrane that prevents the passage of smoke particles through the joint. The smoke seal is not an optional add-on; it is a fundamental component recognized by testing standards such as UL 2079, which evaluates fire-resistive joint systems for both fire endurance and smoke permeability.

The installer's responsibility is to ensure that the smoke seal element is present, correctly positioned, and continuous along the full length of the joint. A torn, misaligned, or missing smoke seal renders the barrier incomplete, even if the fire-resistant materials are intact.

Mistake 5: Incorrect Fastening — The "Z-Clip" Problem

How a fire barrier is secured inside the expansion gap directly determines whether it stays in place during a fire event. Poor fastening is one of the most frequent on-site failures we see.

The correct method uses galvanized steel Z-clips or mounting angles anchored to the vertical face of the concrete slab. These clips hold the fire barrier blanket in the correct orientation and position, ensuring it remains in place as the joint opens and closes.

Common fastening errors include:

Using the wrong clip material. Non-galvanized steel can corrode over time, weakening the attachment. Always use galvanized or stainless steel hardware.

Inadequate clip spacing. Clips placed too far apart allow the barrier to sag or shift. Follow the manufacturer's specified spacing — typically no more than 300 mm (12 inches) on center.

Anchoring into unsound substrate. Clips must be fastened into solid concrete, not into spalled or deteriorated slab edges. If the concrete is compromised, the fastening is compromised.

MSFB fire barriers are designed for straightforward installation using Z-clips, and MEISHUO provides detailed spacing and anchoring specifications with every system. Following these instructions precisely is not a suggestion — it is what stands between a rated assembly and a potential failure.

Mistake 6: Improper Splicing

On long expansion joint runs, a single length of fire barrier material is rarely enough. Splicing is necessary, but how it is done matters greatly. A poorly executed splice — overlapping without sealant, or using a general-purpose adhesive that breaks down under heat — creates a weak point that fire can exploit. Under high-temperature conditions, the splice can open up, exposing the joint cavity.

The correct procedure: Splices should only be made using factory-approved high-temperature sealants and overlapping techniques. The overlap length must meet the manufacturer's minimum requirement, and the sealant must be applied continuously across the full width of the overlap. This ensures the splice maintains the same fire endurance rating as the rest of the barrier.

Beyond fire and smoke protection, a correctly installed fire barrier also delivers an often-overlooked benefit: improved acoustic performance. The mass of the fire blanket — the aluminum silicate fiber core, the stainless steel foil facing, and the galvanized mesh — adds significant density within the joint cavity, helping to reduce sound transmission between floors or rooms. For projects where STC (Sound Transmission Class) ratings matter — hospitals, hotels, multi-family residential, or office buildings — an MSFB fire barrier provides this measurable acoustic value at no additional cost.

Fire barrier performance is not theoretical. It depends on what happens on site: whether the right product is installed in the right location, secured properly, spliced correctly, and paired with the appropriate smoke and moisture protection.

At MEISHUO, our MSFB fire barrier systems are tested to provide 2-hour, 3-hour, and 4-hour fire endurance ratings under ASTM E119 and UL 2079 standards — rigorous international benchmarks for fire-resistive construction. Each system is built around a core of high-temperature aluminum silicate fiber, encased in stainless steel foil and supported by galvanized mesh, delivering reliable performance across decades of building movement.

Installing fire barriers on your next project? Contact MEISHUO's engineering team for installation guidance, technical data sheets, and product support. A correctly installed fire barrier doesn't just meet code — it buys time when time matters most.
