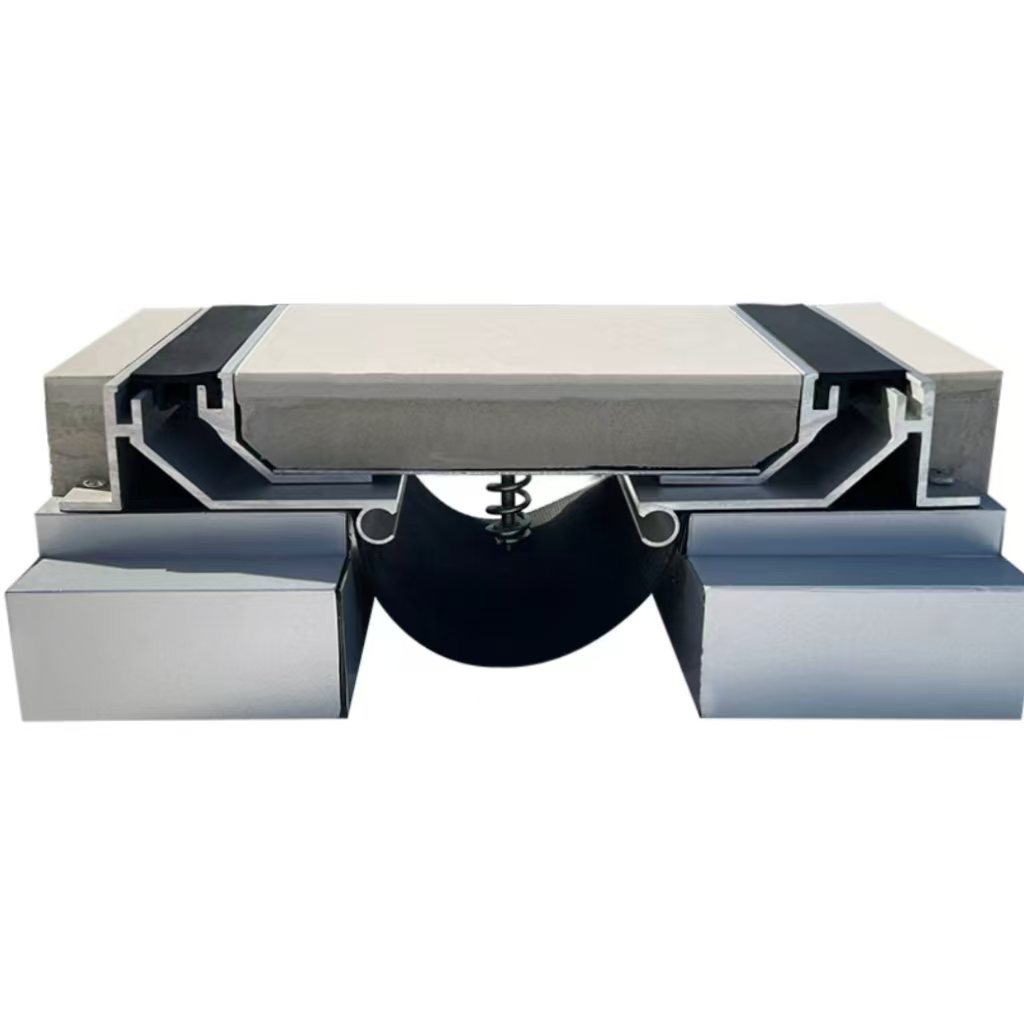

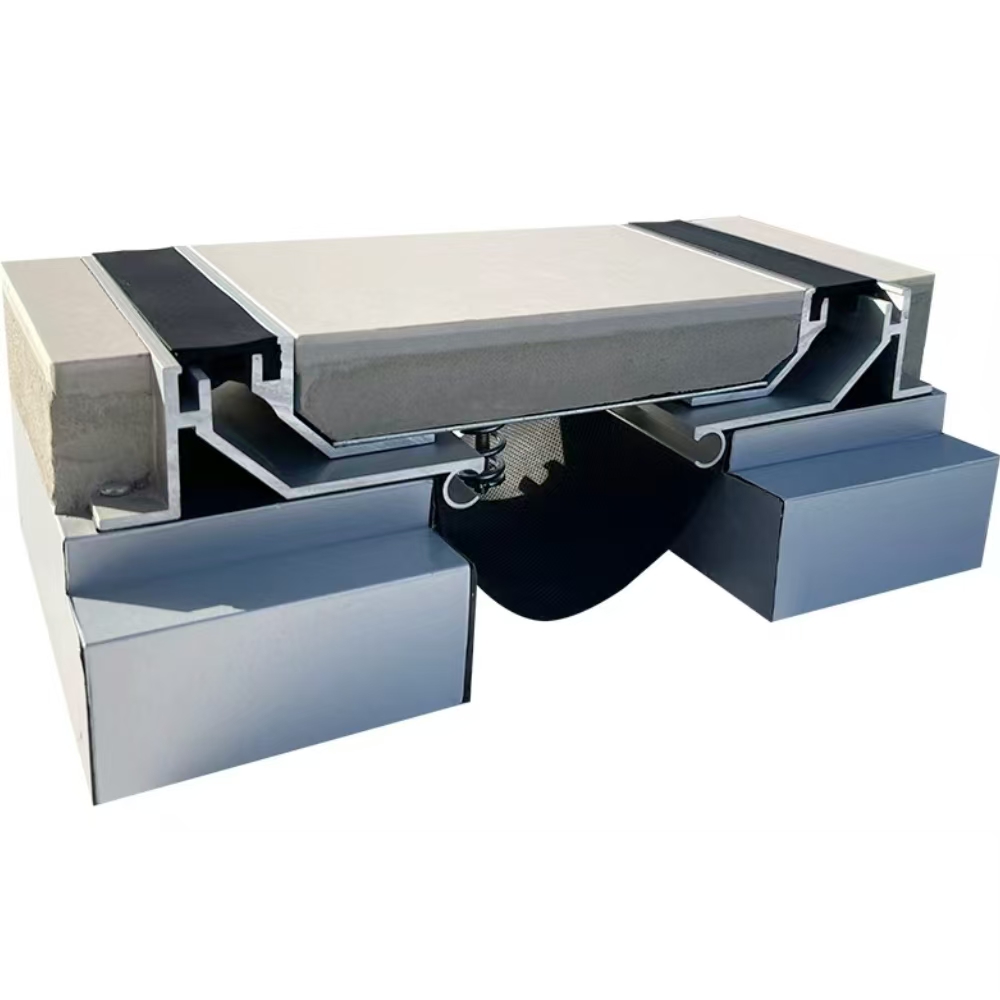

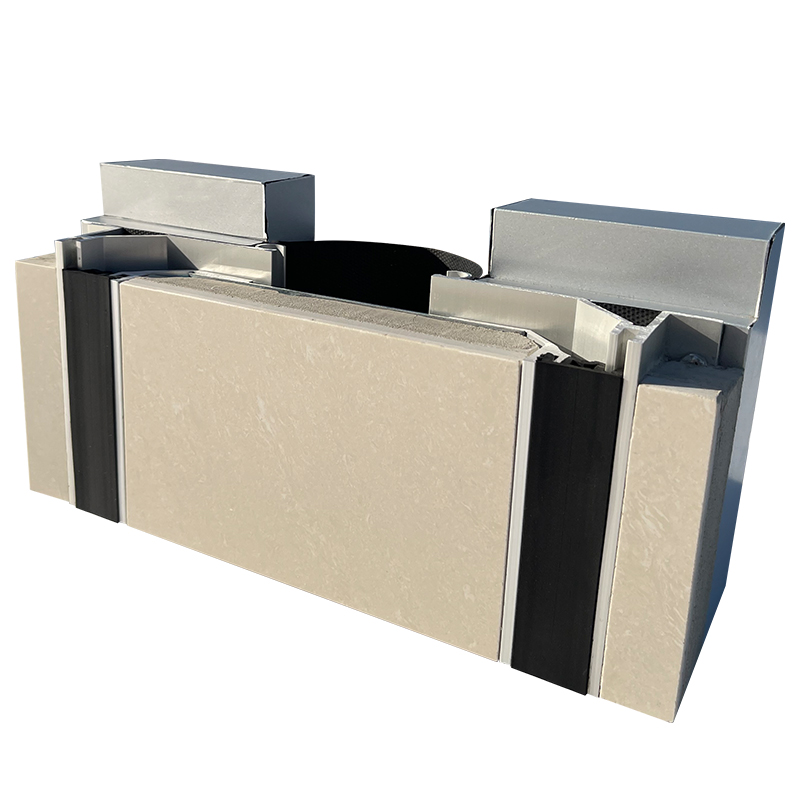

Fire-Rated Seismic Joints MSDSZJ

Advantages
Flush, aesthetic finish: After installation, only two rubber strips are visible on the floor, blending harmoniously with surrounding finishes.
Adaptable to various joint widths
Seismic & vibration control option: Can be configured with seismic-resistant and shock-absorbing features for earthquake‑prone areas.

Limitations
Limited movement capacity: When the rubber strips are compressed or stretched, they may bulge or sink, creating an uneven surface that detracts from appearance. This effect becomes more pronounced with wider strips required for larger movements.
Lower durability than metal: Rubber strips have a shorter service life and typically need replacement after a few years of use.

✅ Factory Direct – No Middleman
✅ Fire-Rated & Seismic Certified
✅ Custom-Engineered for Your Site
✅ 10-Year Warranty
✅ Since 2010 – Trusted for Over a Decade
✅ Global Exporter – Serving 30+ Countries Across EU, Asia & ME

Our engineers typically respond within 2 hours

Availability:
Quantity:
  • MSDSZJ

  • Recessed Mounted

  • Optional

  • Yes

  • Pedestrian

  • Free

  • Malls/Airports/Hospitals/Industrial/ Parking/Walkways

  • Yes

  • 75-500mm

  • 215-640mm

  • 50mm

  • Aluminum Alloy, Rubber

  • Floor to Floor

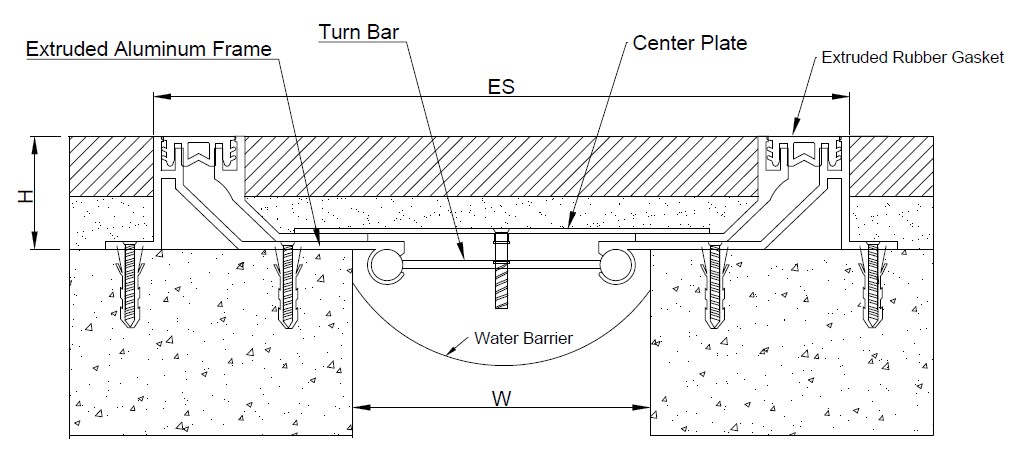

photobank

MSDSZJ
Joint Width(W)(mm)
75 100 150 200 250 300 350 400 450 500
Exposed Surface(ES)(mm) 215 240 290 340 390 440 490 540 590 640
Movement Capacity(mm) 50 50 50 50 50 50 50 50 50 50
Width of Plate(mm) 115 140 190 240 290 340 390 440 490 540
Thickness of Plate(mm) 1.5 1.5 2 2 3 3 3 5 5 5


IMG_7823(1)IMG_4293(1)
