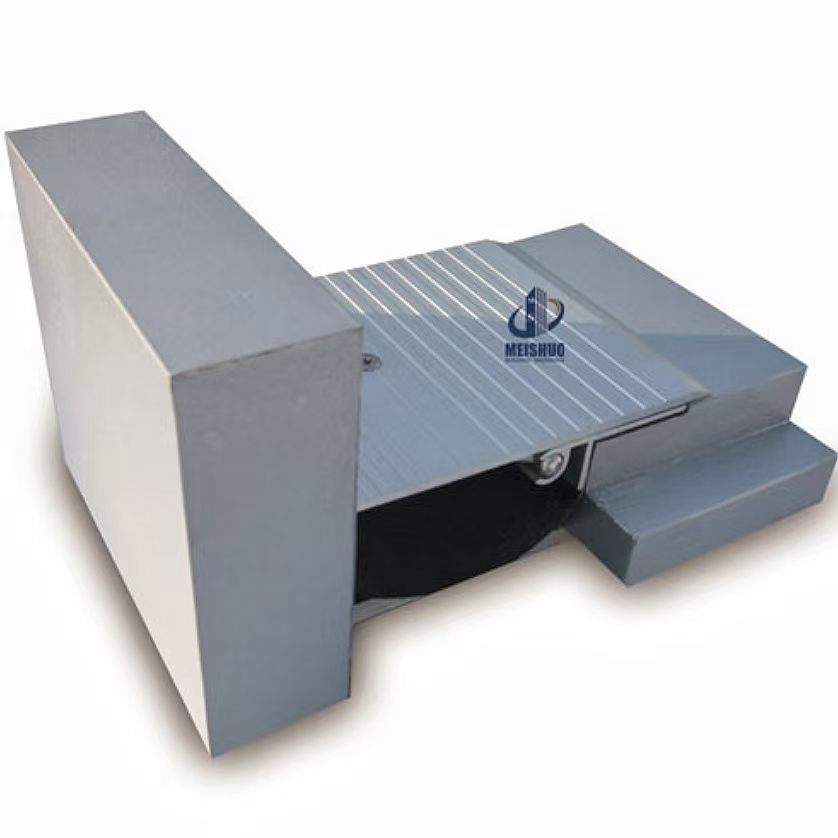

Floor to Wall Expansion Joints MSD-QGJ

Advantages
Variety of finishes: Available in multiple surface treatments such as polished or painted finishes. Can be coordinated with stone, tile, and other surrounding floor finishes for a cohesive appearance.
Easy installation: Highly prefabricated design allows for fast on-site assembly.
Simple maintenance: Cover plates can be lifted or removed for easy cleaning of debris inside the expansion gap. Daily cleaning requires only wiping the surface.
Limitations
High requirements for flatness: Demands strict control of substrate flatness. Poor alignment may result in height differences between the cover plate and surrounding floor, affecting safety and aesthetics.
Debris accumulation in gaps: The expansion gap between the cover plate and the frame can collect dust, requiring regular cleaning to maintain appearance.

Our engineers typically respond within 2 hours
Availability:
Quantity:
  • MSD-QGJ

  • Recessed Mounted

  • Optional

  • Yes

  • Pedestrian

  • Free

  • Malls/Airports/Hospitals/Industrial/ Parking/Walkways

  • 100-200mm

  • 150-300mm

  • 90-190mm

  • Aluminum Alloy, Rubber

  • Floor to Wall

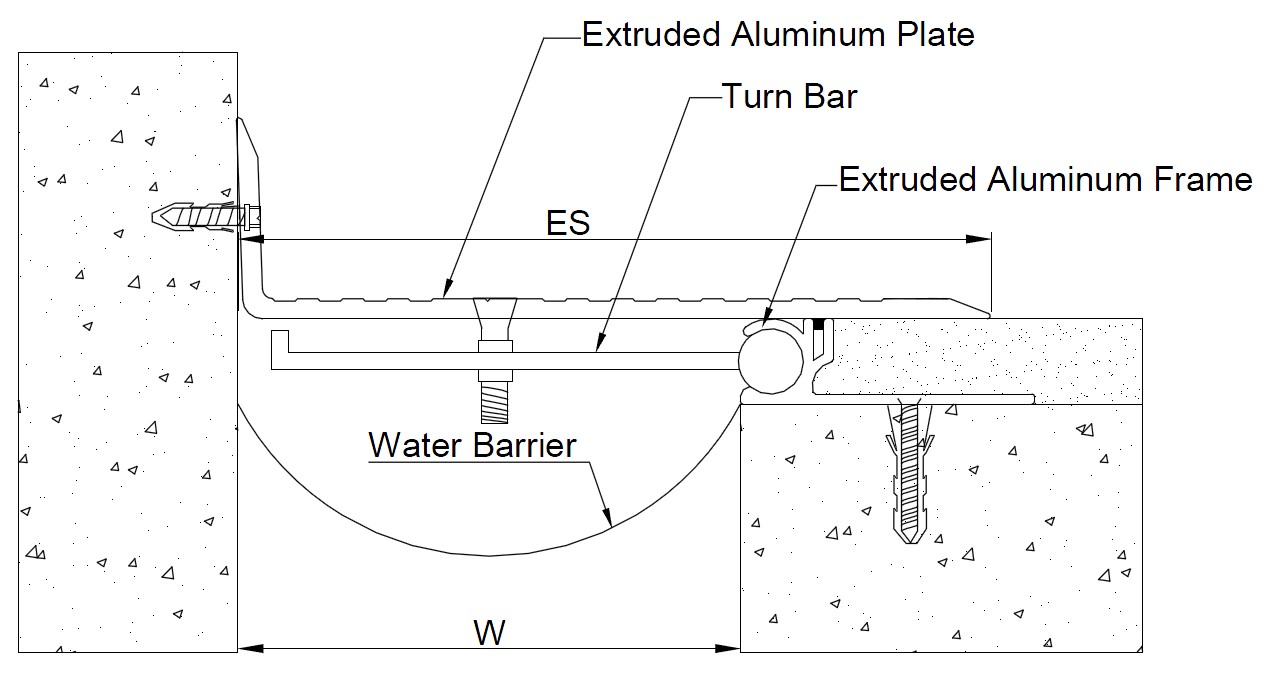

photobank


MSD-QGJ
Joint Width(W)(mm) 100 150 200
Exposed Surface(ES)(mm) 150 200 300
Movement Capacity(mm) 90 140 190



IMG_9634(1)IMG_7826(1)(1)
