Flush Seismic Expansion Joint Cover MSDSZB

Share to:

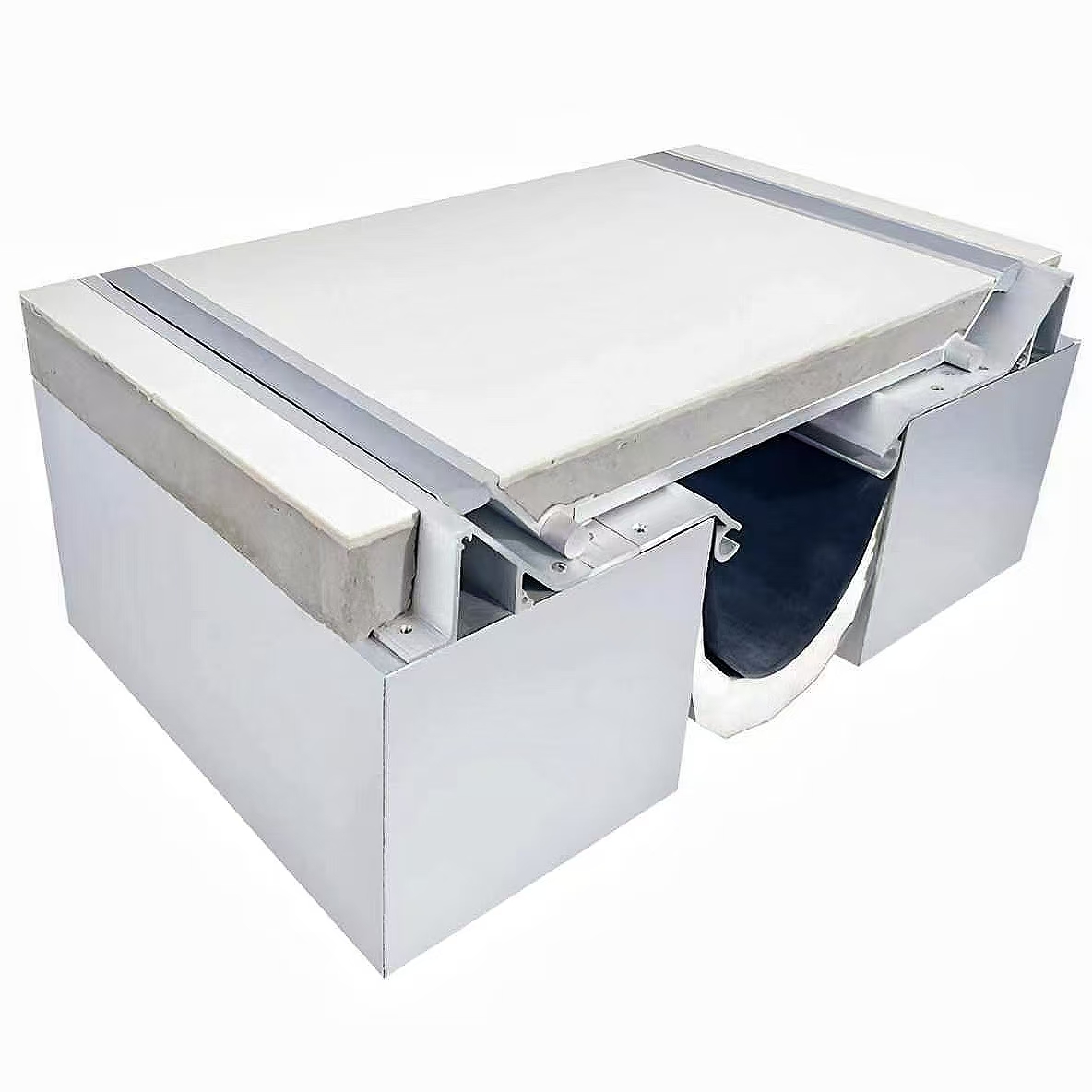

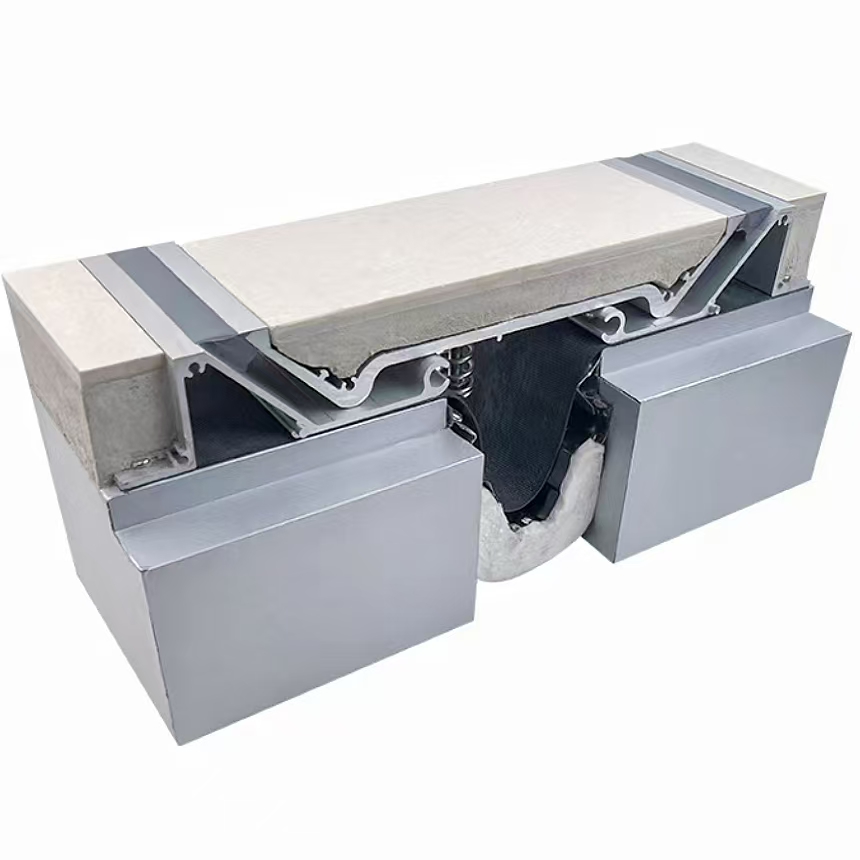

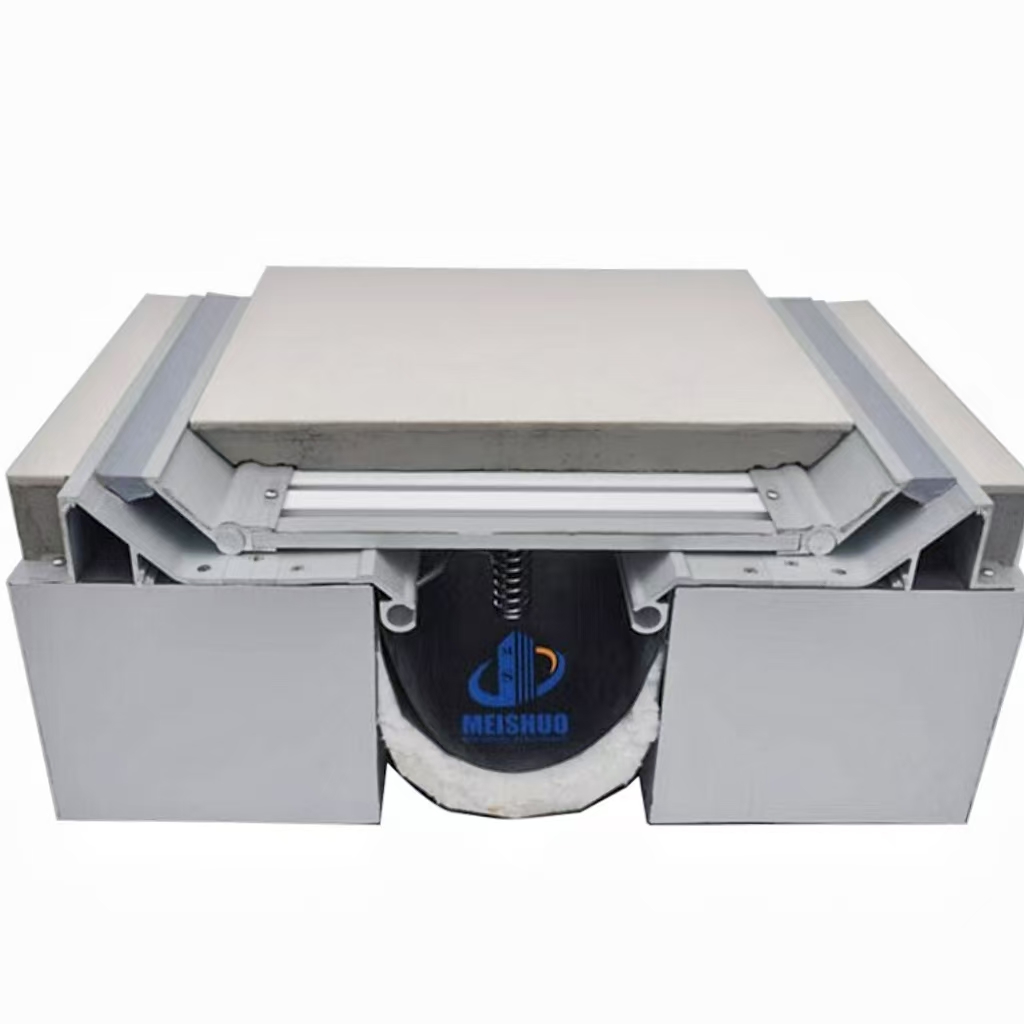

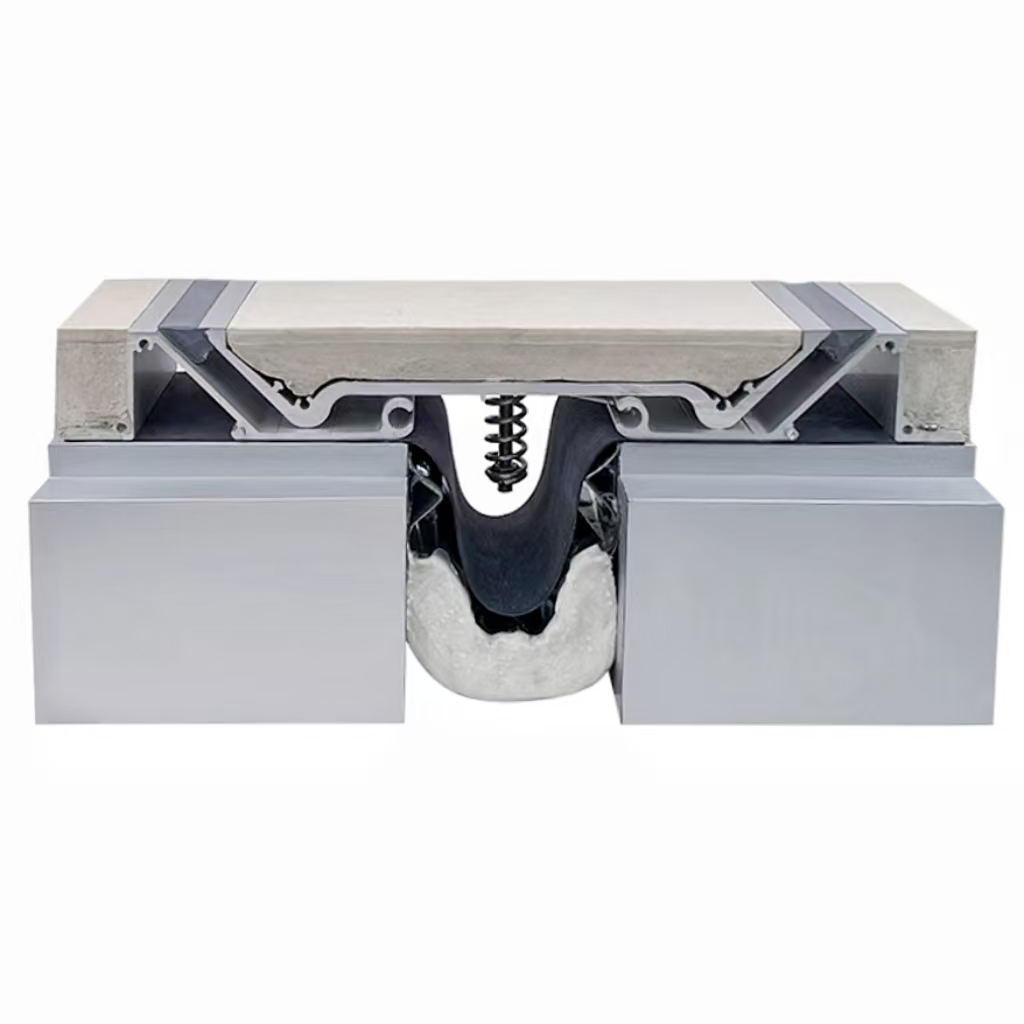

Flush Seismic Expansion Joint Cover MSDSZB

Anti slip grooves make the connection between screed and aluminum base much more stronger in case the decorative level will get off easily.
Round aluminum bearing allows cover to move smoothly and easy to protect system when expansion and compression.
Modular pan's design eliminates deflection and cracking. It's better for loading and connection of the whole system.
Exclusive edge protection eliminates chipping and cracking of pavers.
Special design for big movement inquiry.

Our engineers typically respond within 2 hours

Availability:

Quantity:



Inquire

Model:
MSDSZB
Installation:
Recessed Mounted
Sample:
Free
Seismic-Resistant:
Yes
Fire-Rated:
Optional
Waterproof:
Yes
Loading:
Pedestrian
Suitable for:
Malls/Airports/Hospitals/Industrial/ Parking/Walkways
Joint Width:
50-500mm
Exposed Surface:
348-970mm
Movement Capacity:
95-700mm
Application:
Floor to Floor
Material:
Aluminum Alloy, Rubber

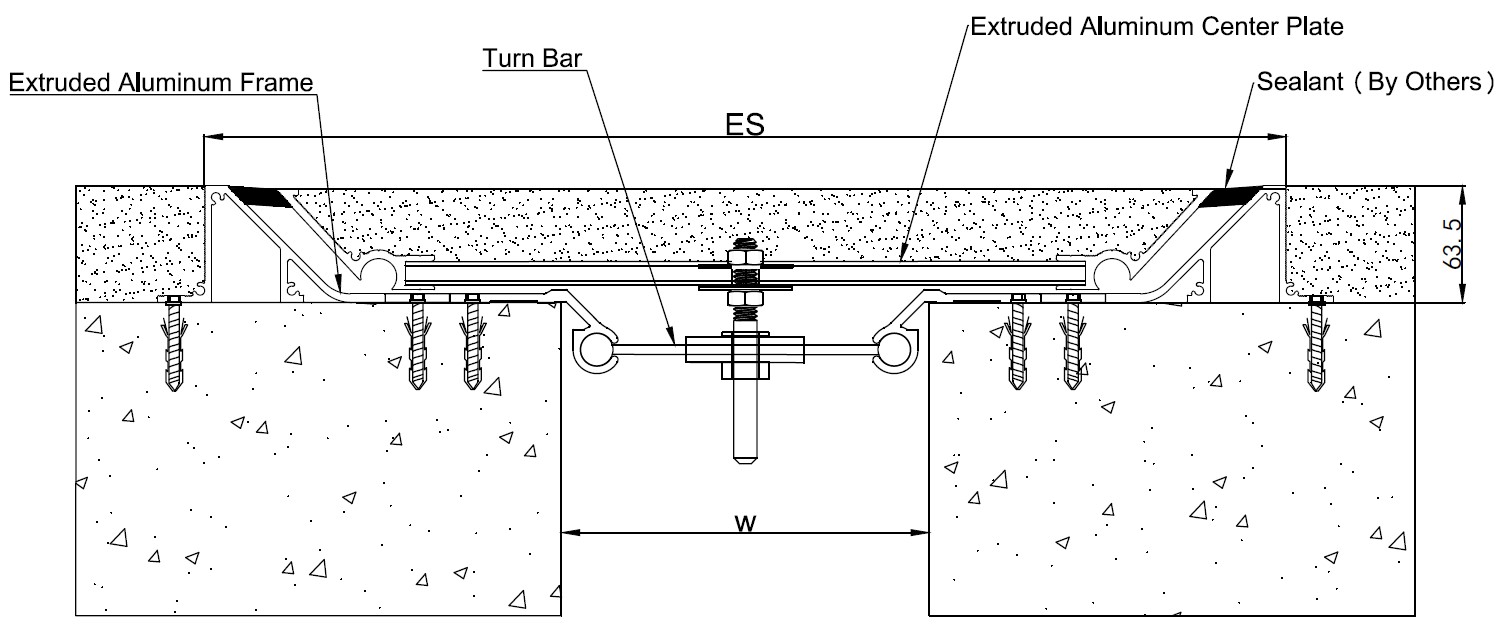

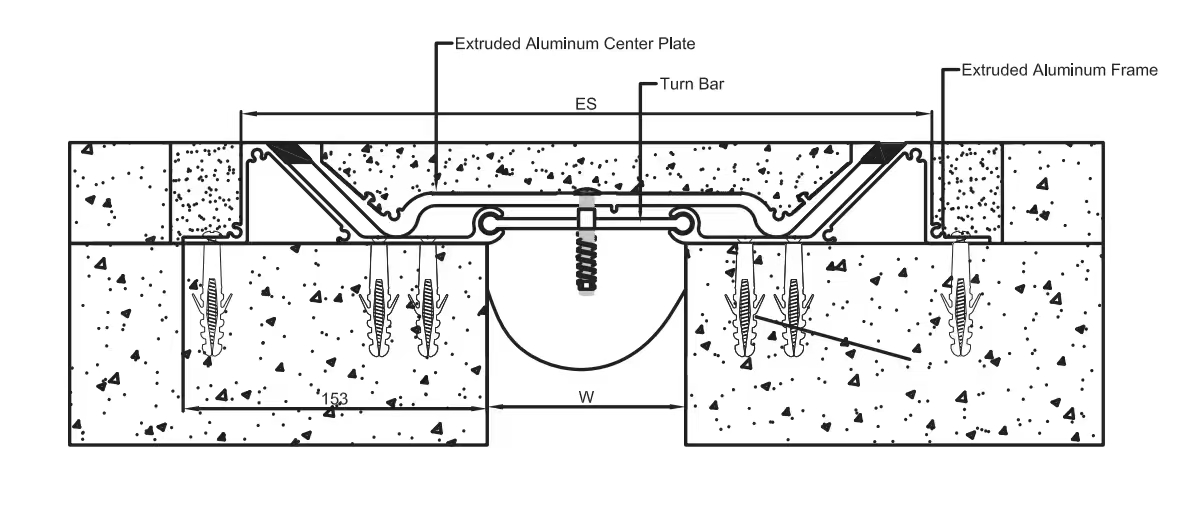

MSDSZB (4) MSDSZB (6)

MSDSZB
Joint Width(W)(mm)	50	75	100	200	250	300	350	400	450	500
Exposed Surface(ES)(mm)	348	348	348	520	590	670	745	820	895	970
Movement Capacity(mm)	95	150	160	230	300	400	475	550	625	700
