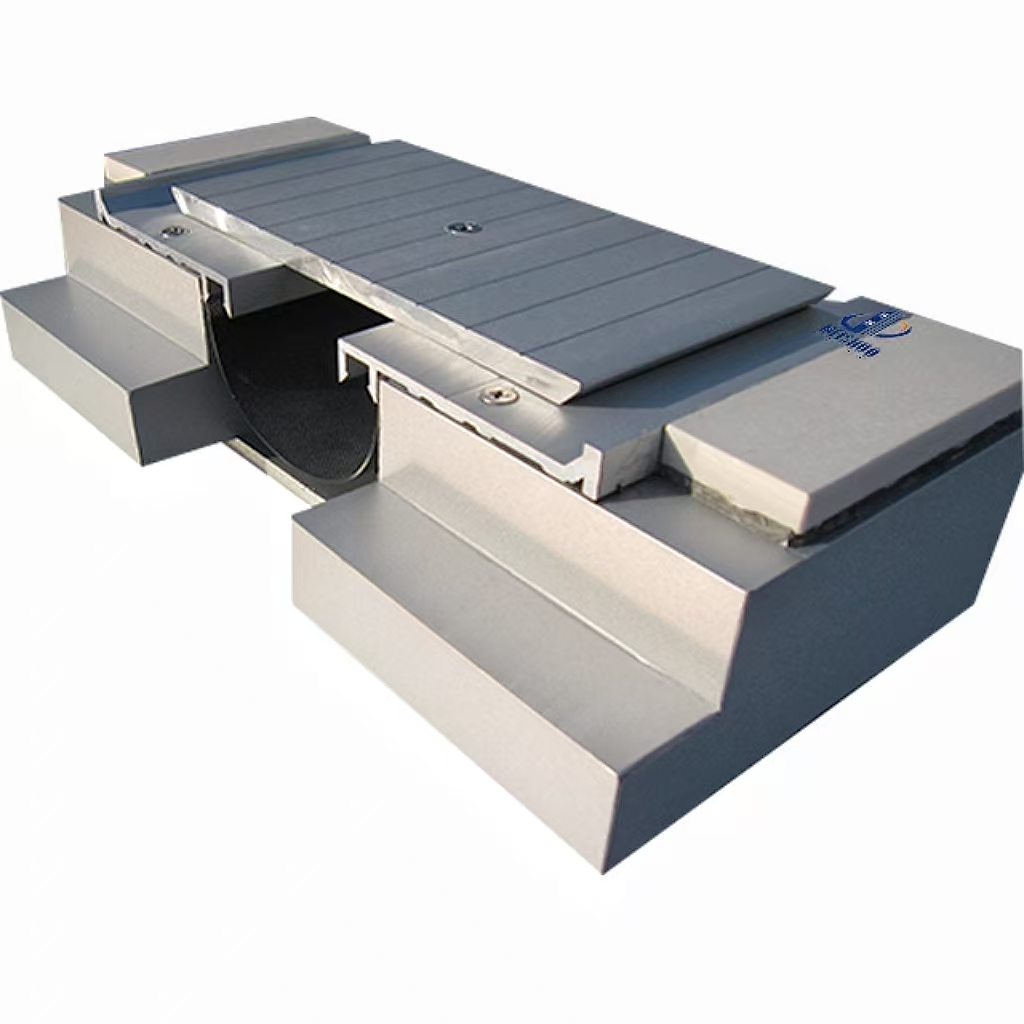

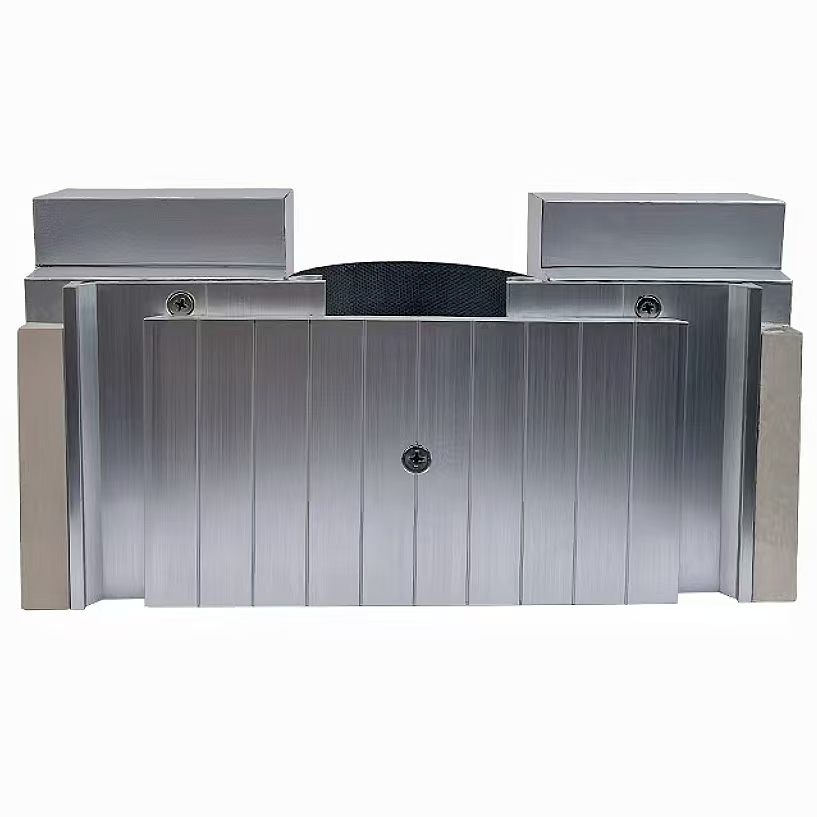

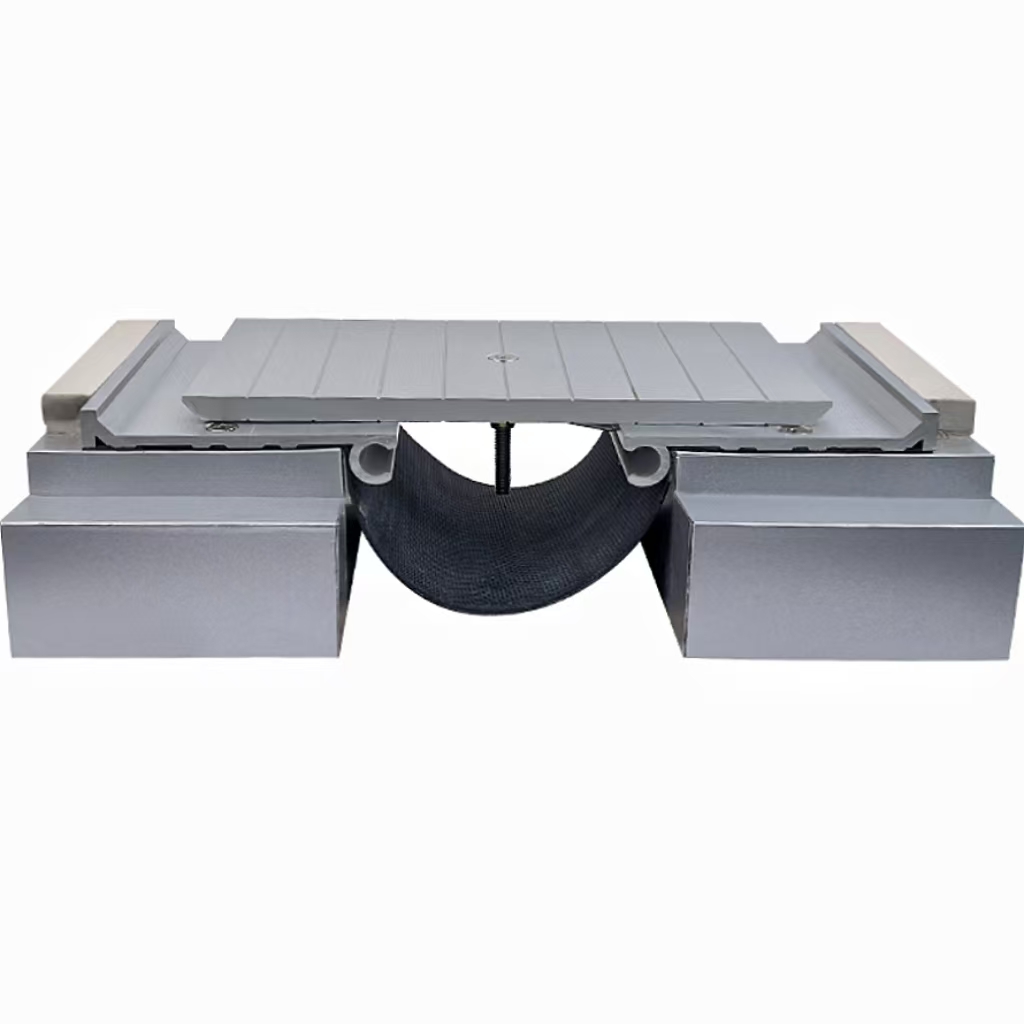

Heavy-Duty Low-Base Expansion Joints MSDGCA-1

Share to:

Heavy-Duty Low-Base Expansion Joints MSDGCA-1

Advantages

Better load capacity and cost-effectiveness than high-base designs.

Limitations

Limited weather resistance of elastomeric filler: The elastic gel filler has moderate weatherability. Over time, as the gel ages, a visible crack may develop between the base and the filler under tension, affecting the aesthetic appearance.

Our engineers typically respond within 2 hours

Availability:

Quantity:



Inquire

Model:
MSDGCA-1
Installation:
Recessed Mounted
Fire-Rated:
Optional
Waterproof:
Yes
Loading:
Private Car
Sample:
Free
Suitable for:
Malls/Airports/Hospitals/Industrial/ Parking/Walkways
Joint Width:
75-300mm
Exposed Surface:
229-454mm
Movement Capacity:
80mm
Material:
Aluminum Alloy, Rubber
Application:
Floor to Floor

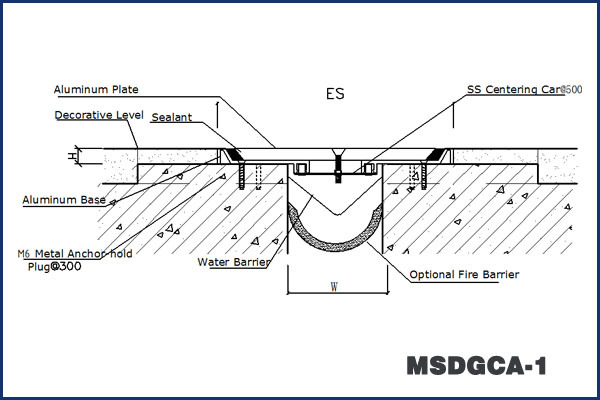

photobank

MSDGCA-1
Joint Width(W)(mm)	75	100	125	150	200	250	300
Exposed Surface(ES)(mm)	229	254	279	304	354	404	454
Movement Capacity(mm)	80	80	80	80	80	80	80
