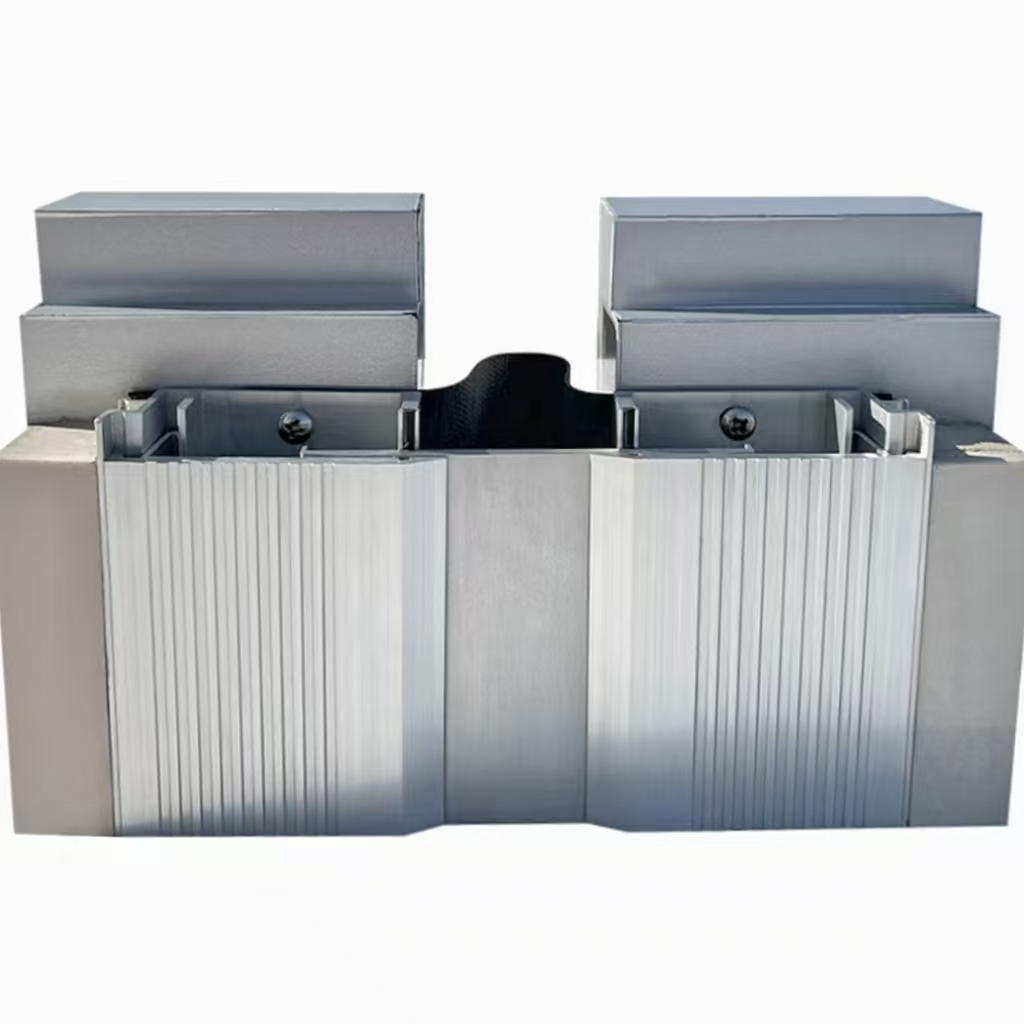

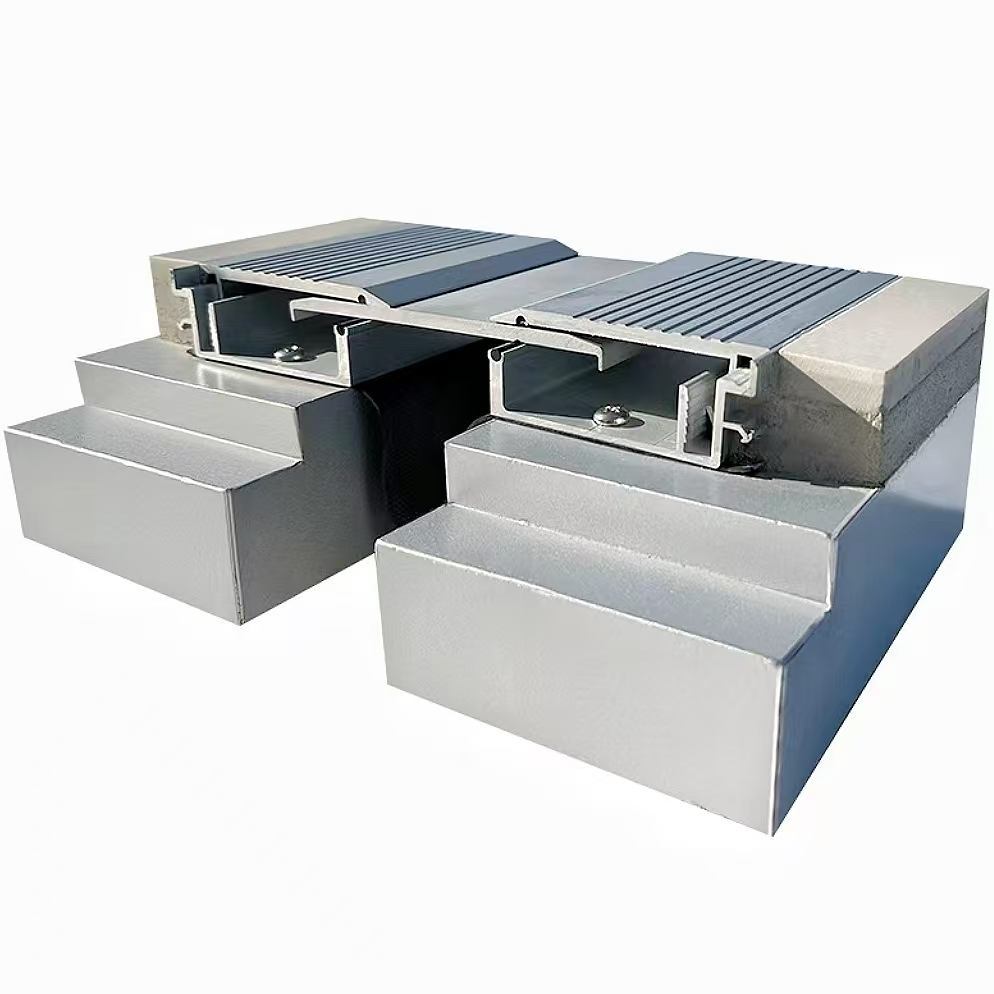

Lock Metal Expansion Joint Covers MSDK

Advantages

Simplified installation: Fewer on-site coordination steps; the system can be installed in a single pass.

Limitations

The center plate sits lower than the surrounding finishes. When the joint width is too narrow, it creates a recessed groove that looks visually inconsistent.

When the joint width exceeds 250 mm, it becomes impractical to use an aluminum alloy center plate. Alternative materials for the center plate often result in noticeable color differences with the cover plate.

The plate surface moves with temperature changes and pedestrian traffic. Over years of use, wear on the center plate may also cause color mismatch.

Our engineers typically respond within 2 hours

Availability:

Quantity:



Inquire

Model:
MSDK
Installation:
Recessed Mounted
Fire-Rated:
Optional
Waterproof:
Yes
Loading:
Pedestrian
Sample:
Free
Suitable for:
Malls/Airports/Hospitals/Industrial/ Parking/Walkways
Joint Width:
75-300mm
Exposed Surface:
283-508mm
Movement Capacity:
25mm
Material:
Aluminum Alloy, Rubber
Application:
Floor to Floor

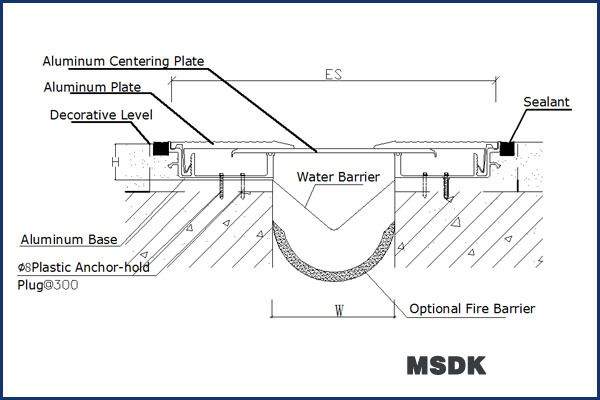

photobank (3)

MSDK
Joint Width(W)(mm)		25	50	100
Exposed Surface(ES)(mm)		168	193	243
Movement Capacity(mm)	Total	79	108	108
	+	54	54	54
	-	25	54	54
Plate Width(mm)		83	108	150
Thickness of Plate(mm)		4	4	4
