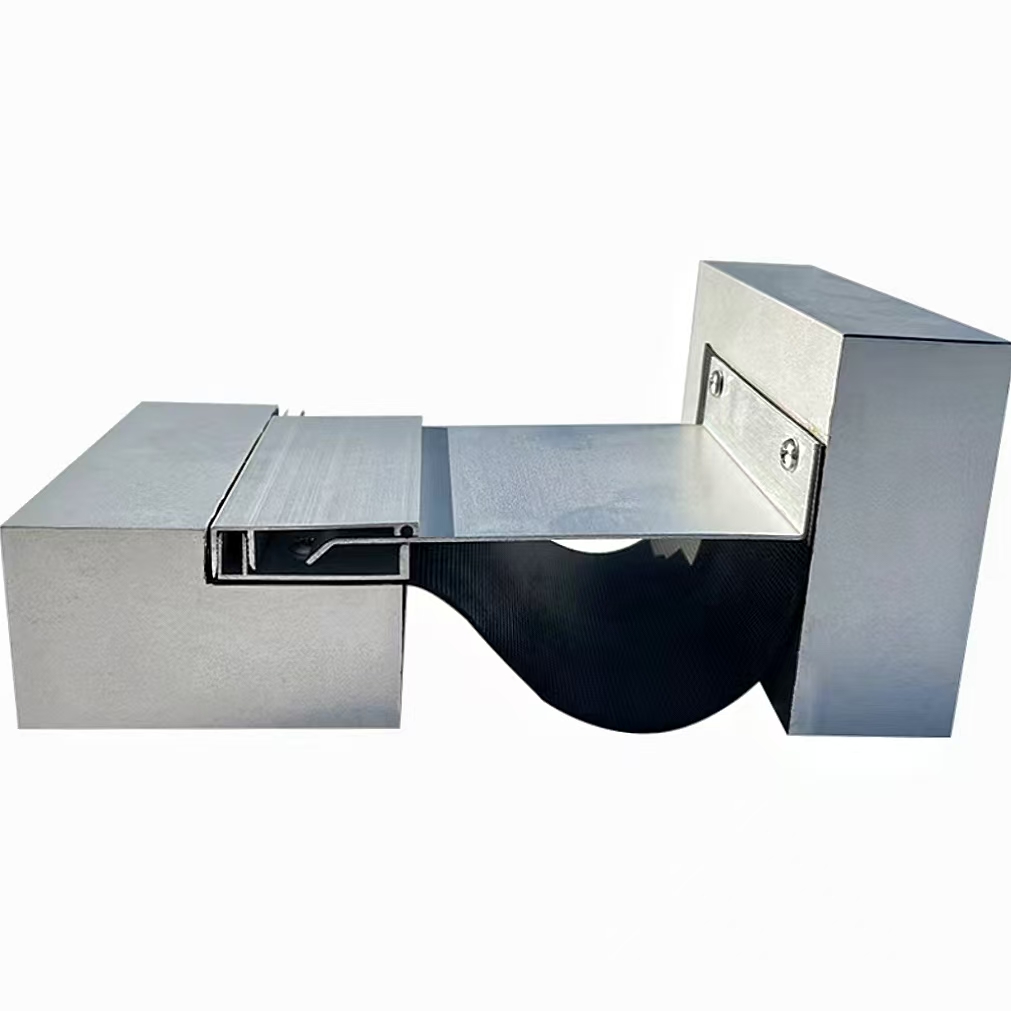

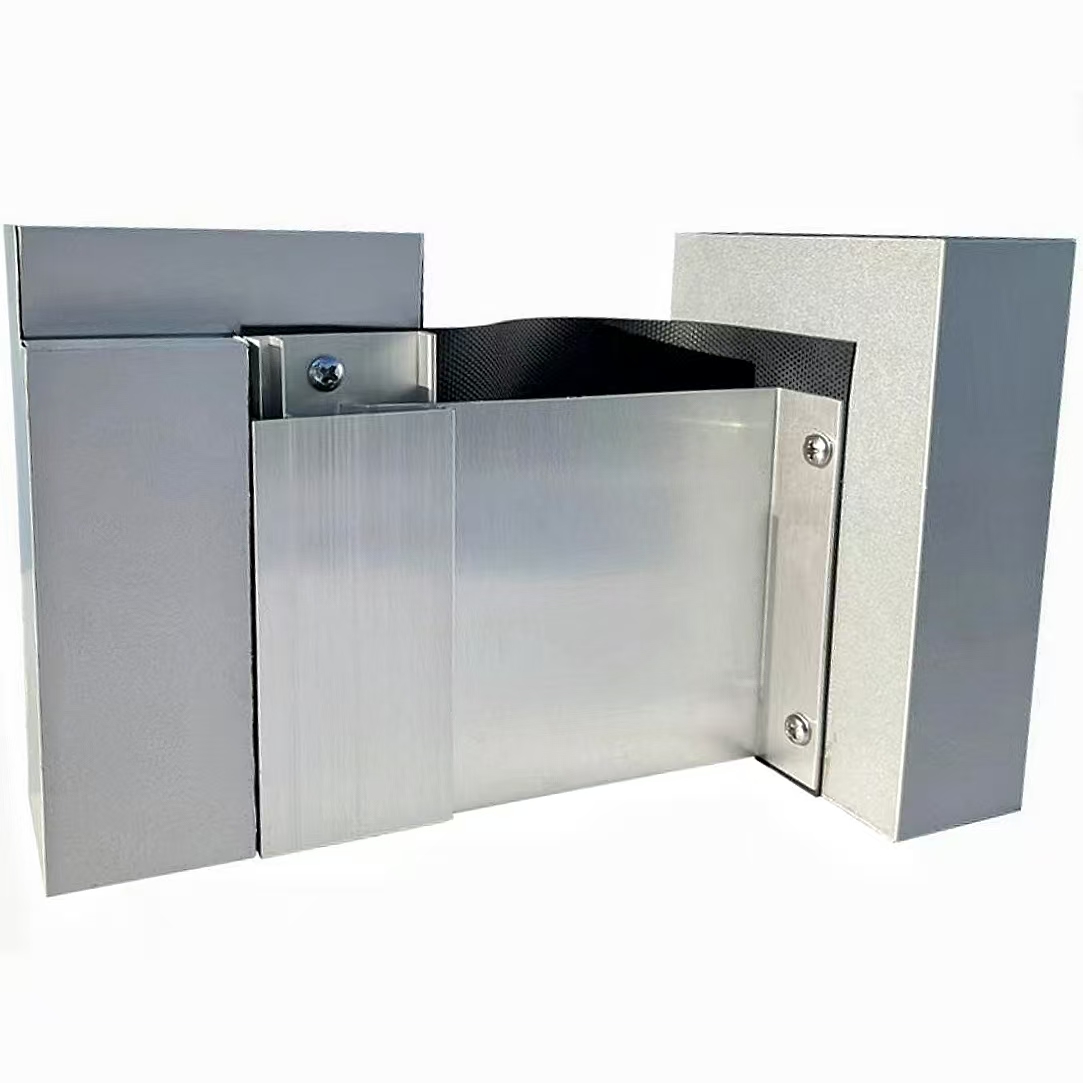

Lock Metal Wall to Ceiling Expansion Joint MSN-QSK

Advantages
Better durability than rubber flush‑type joints: Offers long‑lasting performance with excellent value for money.
Harmonious with various finishes
Easy installation with low flatness requirement: No need for highly precise substrate preparation; flexible installation sequence.
Limitations
Potential instability with wide joints: If the aluminum base is too thin for a very wide joint, the center plate may not lock securely.
Color difference: The aluminum base and cover plate are made of different materials, which may result in slight color mismatch.
Sinking risk with heavy plates: When the plate is too heavy, it may tend to sink or shift downward.
Our engineers typically respond within 2 hours
Availability:
Quantity:
Inquire

  • MSN-QSK

  • Recessed Mounted

  • Optional

  • Yes

  • Pedestrian

  • Free

  • Malls/Airports/Hospitals/Industrial/ Parking/Walkways

  • 25-500mm

  • 75-550mm

  • 40-70mm

  • Aluminum Alloy, Rubber

  • Exterior&Interior Wall, Ceiling

photobank

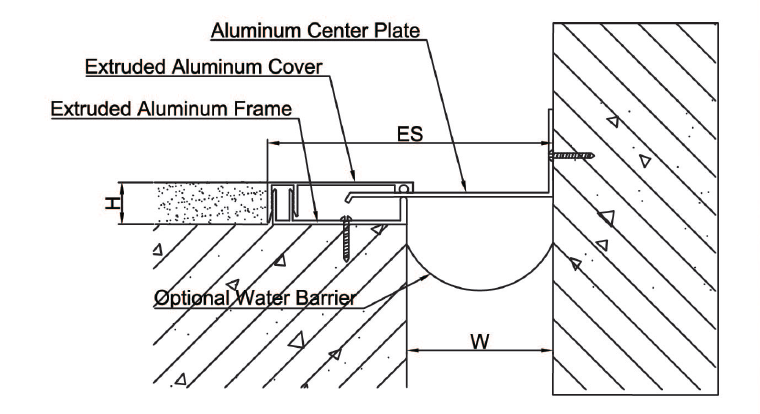

MSN-QSK
Joint Width(W)(mm) 25 50 75 100 125 150 175 200 250 300 350 400 450 500
Exposed Surface(ES)(mm) 75 100 125 150 175
 200 225 250 300 350 400 450 500 550
Movement Capacity(mm)
 70 40 40 40 40 40 40 40 40 40 40 40 40 40
Width of Plate(mm) 45 70 95 120 145 170 195 220  270 320 370 420 470 520
Thickness of Plate(mm) 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 2 2 2 2


QQtupian20注: 建议上传图片大小690px*460px
  • CE & ISO 9001
  • ASTM 6063 T5
  • ASTM D 2047
  • ASTM D412
  • ASTM D573
  • ASTM D624
  • ASTM D1415
  • ASTM E1966
  • Loading Test
  • ASTM B221
  • ASTM E1399
  • ASTM E119

QQ图片20200726205431IMG_9634(1)
