Advantages
Better durability than rubber expansion joints: Long service life with excellent value for money.
Harmonious with various finishes
More secure than metal locking types
Adaptable to various joint widths
Limitations
Extremely high installation precision required: Demands very high substrate flatness and verticality. The joint must maintain a consistent width throughout, making installation more complex and time‑consuming.
Sinking risk with heavy plates: When the cover plate is too heavy, it may tend to sink or shift downward.
Center plate thickness requirement: For the same joint width, the center plate must be thicker than that of a locking‑type joint. Otherwise, tightening the center screw may cause the plate to bow.
Our engineers typically respond within 2 hours
| Quantity: | |
|---|---|

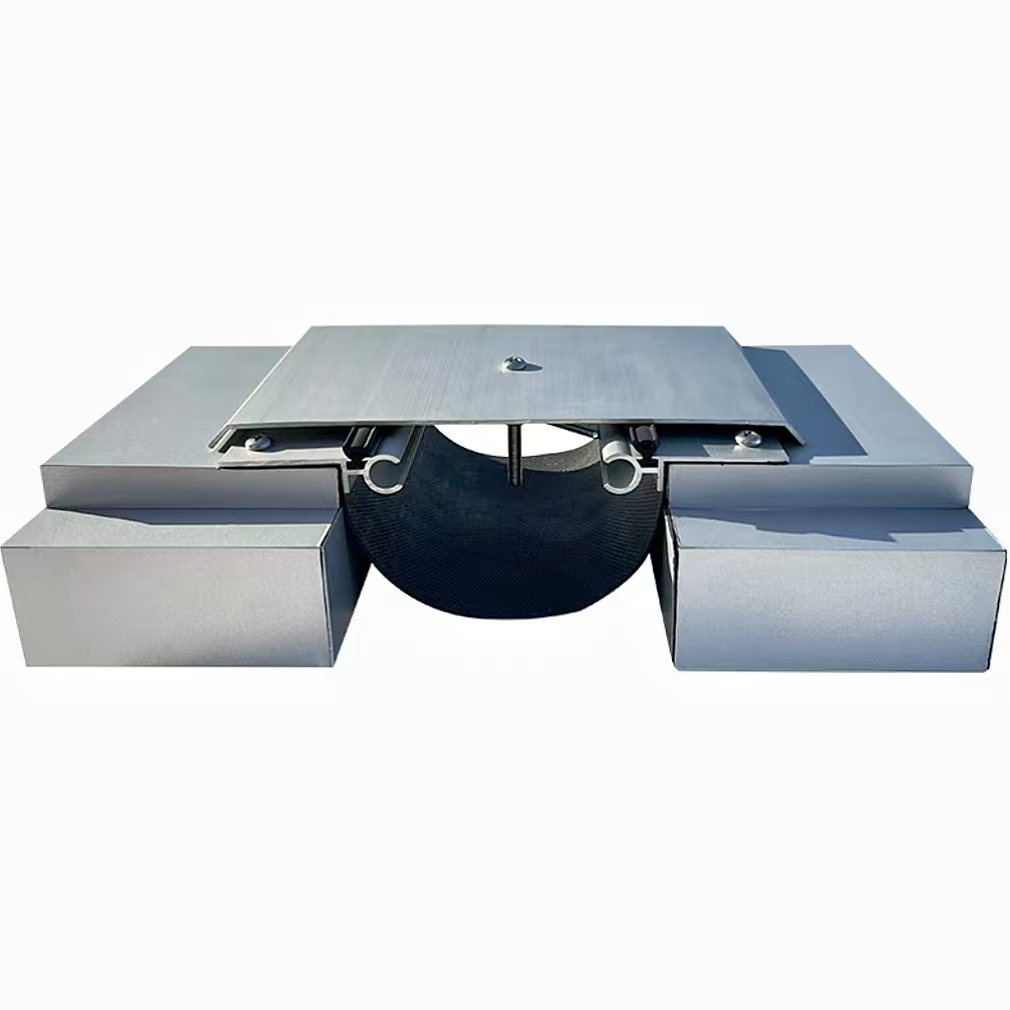

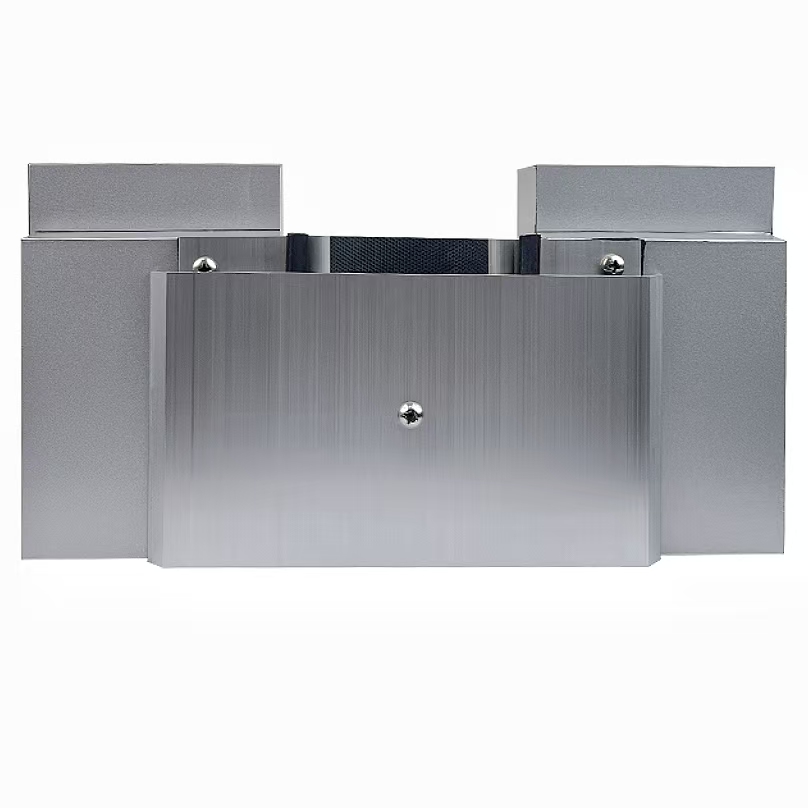

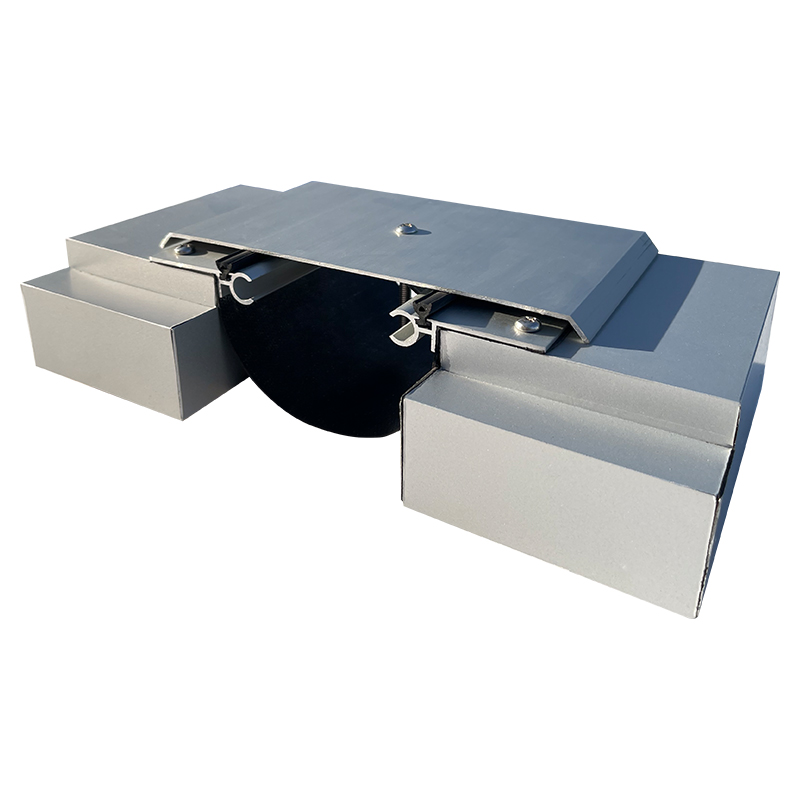

MSQG
Recessed Mounted
Optional
Yes
Pedestrian
Free
Malls/Airports/Hospitals/Industrial/ Parking/Walkways
75-500mm
175-600mm
130-555mm
Aluminum Alloy, Rubber
Exterior&Interior Wall, Ceiling

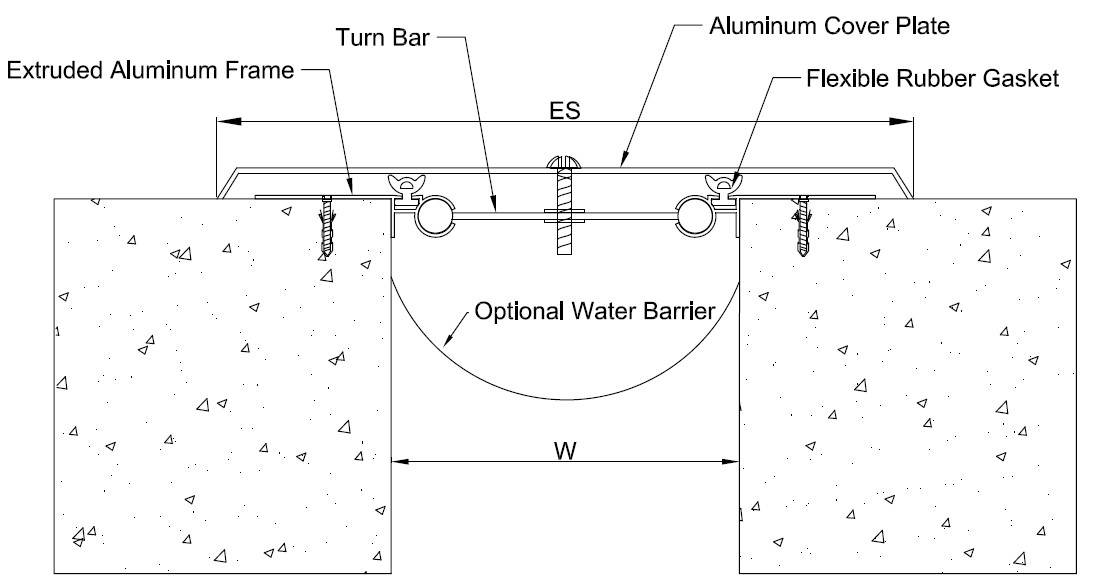

| MSQG | |||||||||||||
| Joint Width(W)(mm) | 75 | 100 | 125 | 150 | 175 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | |
| Exposed Surface(ES)(mm) | 175 | 200 | 225 | 250 | 275 | 300 | 350 | 400 | 450 | 500 | 650 | 600 | |
| Movement Capacity(mm) | Total | 130 | 155 | 180 | 205 | 230 | 255 | 305 | 355 | 405 | 455 | 505 | 555 |
| + | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | |
| - | 30 | 55 | 80 | 105 | 130 | 155 | 205 | 255 | 305 | 355 | 405 | 455 | |
| Width of Plate(mm) | 175 | 200 | 225 | 250 | 275 | 300 | 350 | 400 | 450 | 500 | 550 | 600 | |
| Thickness of Plate(mm) | 1.5 | 1.5 | 1.5 | 1.5 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | |
