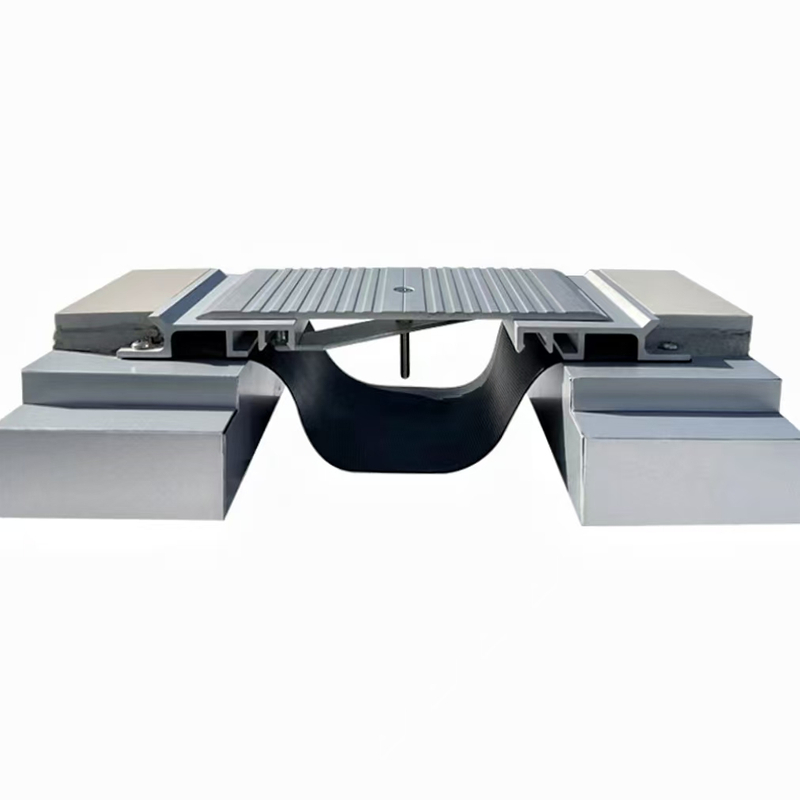

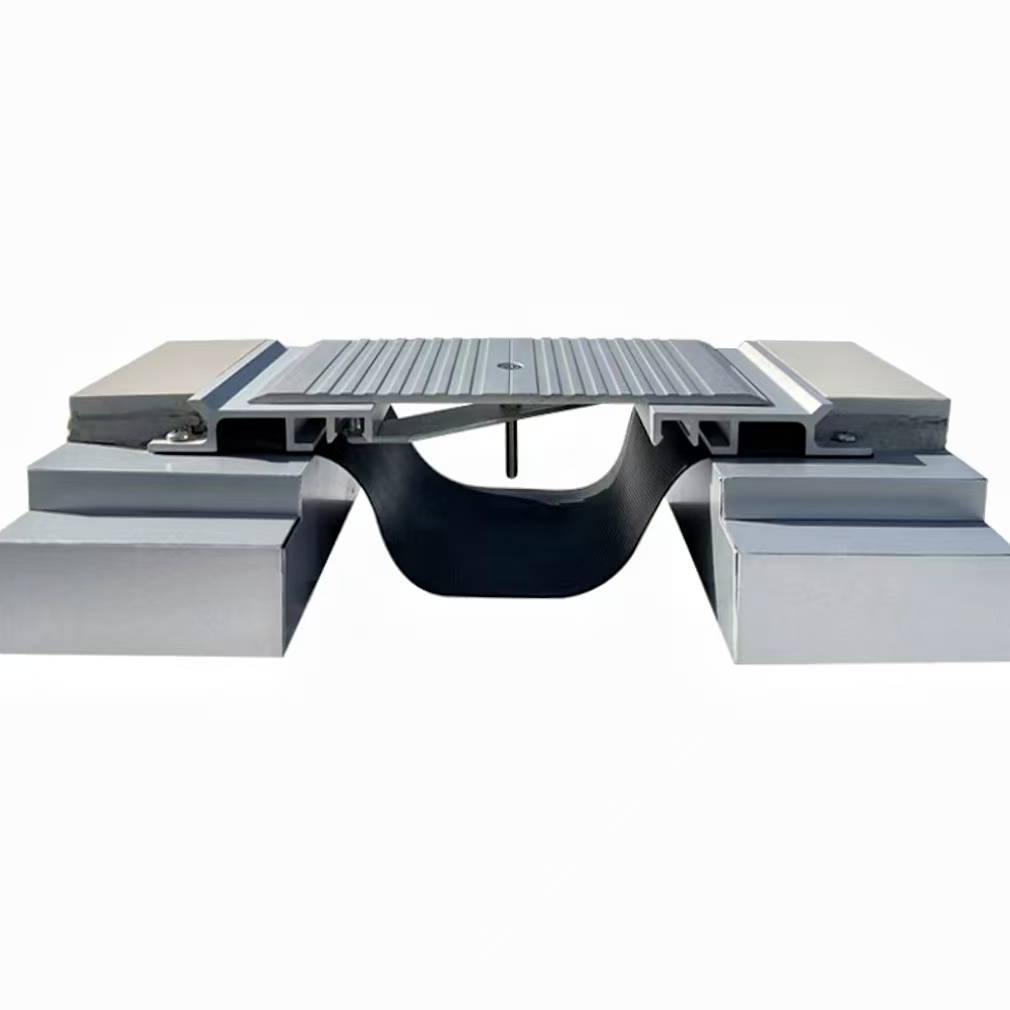

Metal Floor Movement Joints MSDGP

Advantages

Simplified installation: Fewer on-site coordination steps; the system can be installed in a single pass.

Flush finish: The surface aligns perfectly with the surrounding floor and wall finishes, providing a seamless appearance. The center cover plate is recessed into the base, allowing the cover edges to be left un‑chamfered.

Wide material and size options: A broad selection of cover plate materials and dimensions is available to match architectural requirements.The system works effectively with a range of structural gap widths.

Limitations

Debris accumulation: The recessed gap between the base and the center cover plate can collect dust and dirt, making cleaning more difficult and potentially affecting aesthetics over time.

Visible gap at transitions: A small gap may appear between the base and the surrounding finished floor/wall, requiring attention during detailing.
Our engineers typically respond within 2 hours

Availability:

Quantity:



Inquire

Model:
MSDGP
Installation:
Recessed Mounted
Fire-Rated:
Optional
Waterproof:
Yes
Loading:
Pedestrian
Sample:
Free
Suitable for:
Malls/Airports/Hospitals/Industrial/ Parking/Walkways
Joint Width:
75-250mm
Exposed Surface:
167-350mm
Movement Capacity:
93-120mm
Material:
Aluminum Alloy, Rubber
Application:
Floor to Floor

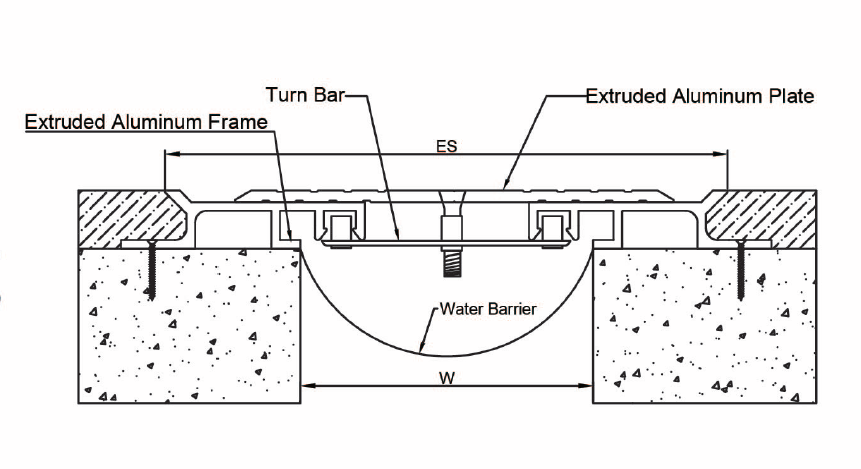

photobank

MSDGP
Joint Width(W)(mm)		75	100	150	200	250
Exposed Surface(ES)(mm)		167	190	240	285	350
Movement Capacity(mm)	Total	93	130	120	75	120
	+	95	95	95	95	95
	-	25	25	25	25	25
Wideness of Plate(mm)		115	150	200	250	300
Thickness of Plate(mm)		4	4	4	4	5
Load Capacity(KN)		20	15	10	8	8
