Most Expansion Joints Aren't Waterproof — Here's What Actually Stops the Water

A common assumption on construction projects is that an expansion joint cover automatically provides waterproof protection. This assumption is wrong — and it leads to costly, yet avoidable failures. The reality is that a standard architectural expansion joint cover bridges a structural gap and handles movement. It does not, by default, stop water. If the joint is exposed to rain, groundwater, or wet-service conditions, waterproofing must be specified as a separate, dedicated function. This article clarifies what makes an expansion joint waterproof and what to look for when water is a concern.

Specifying a floor joint cover and specifying a waterproof joint cover are two different exercises. The former is about traffic, finish, and movement. The latter adds a sealed barrier that prevents water from passing through the joint opening. At MEISHUO, the rule is straightforward: floor, exterior wall, and roof expansion joint systems all include a rubber water barrier as standard. The only exception is interior wall joints, where a water barrier is optional.

Achieving a genuinely waterproof expansion joint typically involves three coordinated components:

• a primary seal or water barrier — a continuous elastomeric membrane or compression seal that blocks water at or just below the surface;

• a drainage path — a flexible gutter and drain tubes that capture water before it reaches the occupied space and carry it to the building’s plumbing;

• an end dam at each termination — where the water barrier is turned up and sealed to prevent water escaping sideways.

These elements work together. A seal without proper end dams leaks at the ends. A gutter without adequate drain capacity overflows. A drain without a slope to feed it collects standing water.

Of all waterproofing details, the end dam is the easiest to overlook — and its absence is one of the most common causes of water damage. Without it, water traveling along the joint simply exits at the open ends, dripping onto whatever is below. It is a small detail with outsized consequences. On any project where waterproofing is specified, confirm that end dam details are included in the scope and correctly installed.

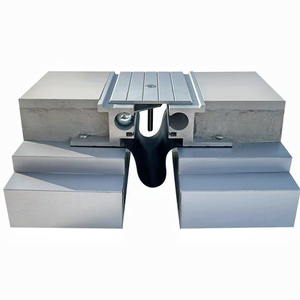

Our water barrier sits directly in the joint gap, maintaining continuous contact with both slab faces as the joint opens and closes. Key features to consider: Continuous contact pressure — the seal must maintain adequate compression against the joint walls at all times, even when the joint is at maximum extension, to prevent water bypass. Chemical compatibility — in pool decks or areas with chemical exposure, the seal material must resist degradation; standard EPDM works for most applications, while for chlorine-heavy environments, consult our team on material options. Standard color range — our seals are available in black and grey; painting is not recommended because paint will crack as the seal flexes during movement cycles. A properly sized and installed water barrier handles the fundamental task: stopping water at the source, before it enters the joint cavity.

A final note on standing water: no expansion joint seal is designed to function permanently submerged. If the surrounding area allows water to pond around the joint, the seal will eventually be compromised — not by product failure, but by application conditions that exceed its design. The surrounding floor should be graded to direct water away from the joint, and where standing water is unavoidable, a properly designed drainage system must manage it separately.

Specifying expansion joints where water is a concern? Contact our engineering team with your joint dimensions and application conditions — we’ll help you confirm the right seal specification.
