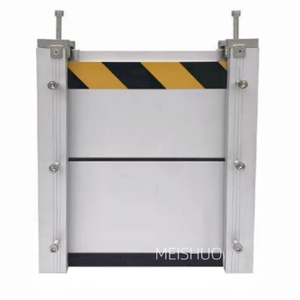

New Design Flood Panel Series MSFB35T

MEISHUO demountable flood barriers provide rapid, on-site protection for property and infrastructure against rising water levels.

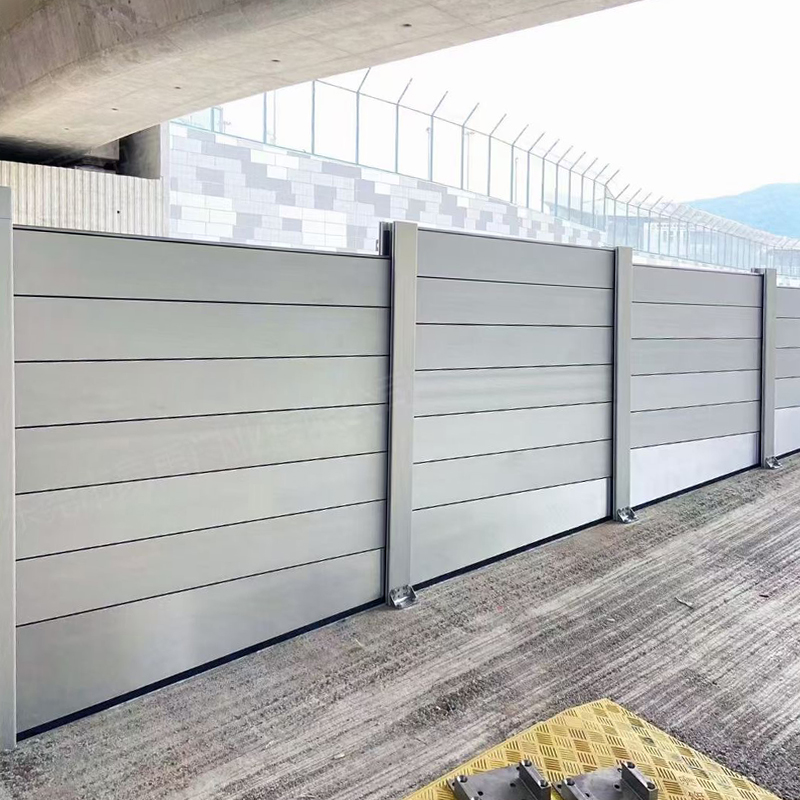

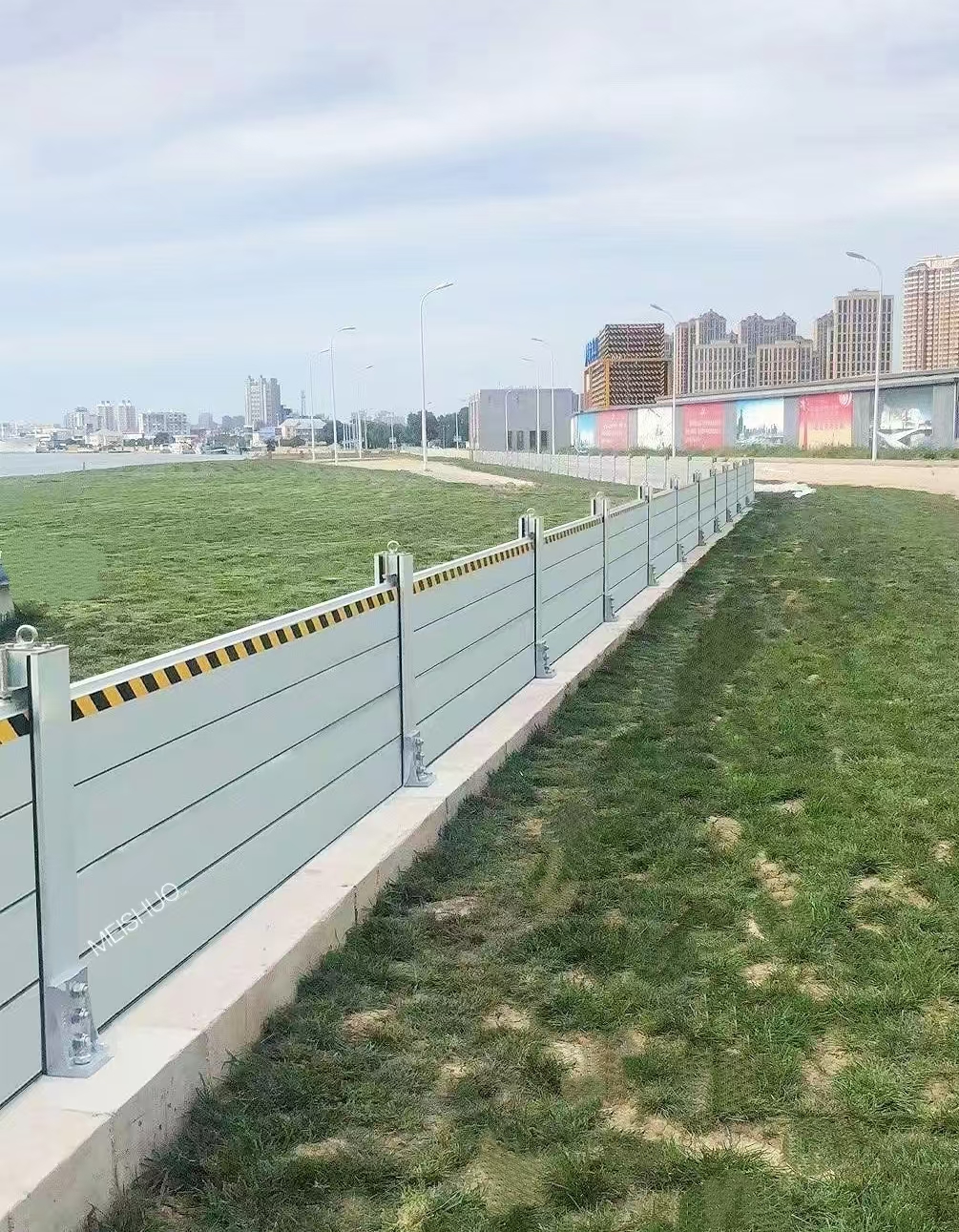

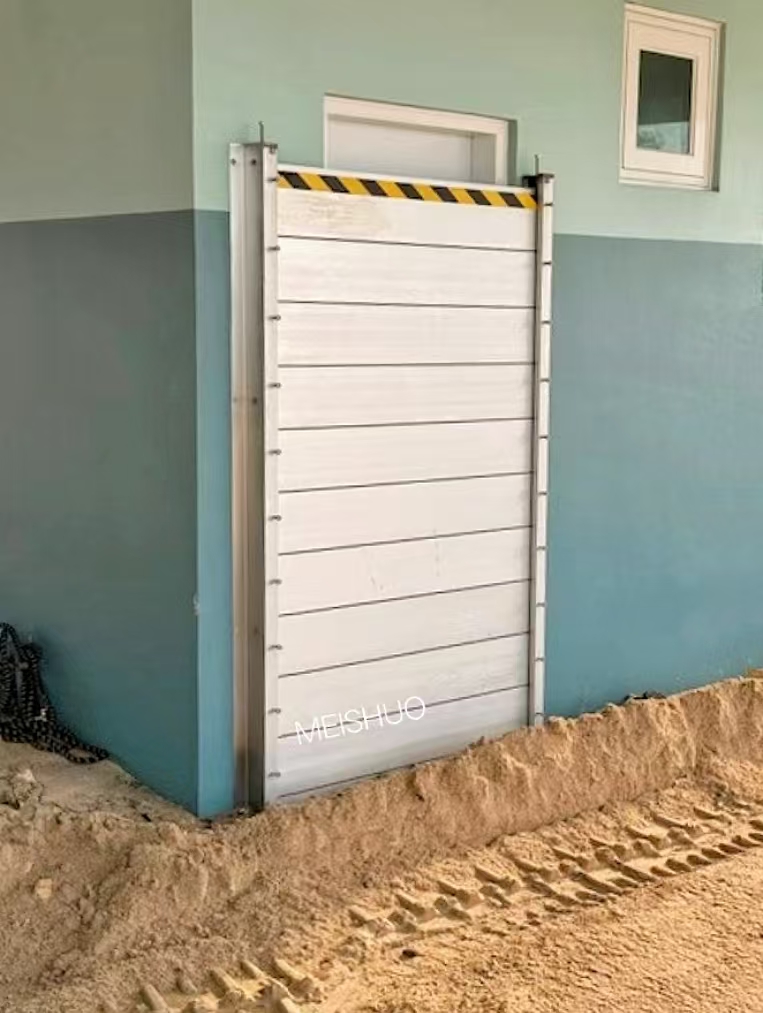

U-Channel posts are permanently installed on either side of the opening. These unobtrusive posts remain discreetly in place year-round. When flooding threatens, a series of lightweight aluminum panels are simply stacked into the channels to the required height, creating a robust barrier. Once the water recedes, the panels are easily removed and stored away.

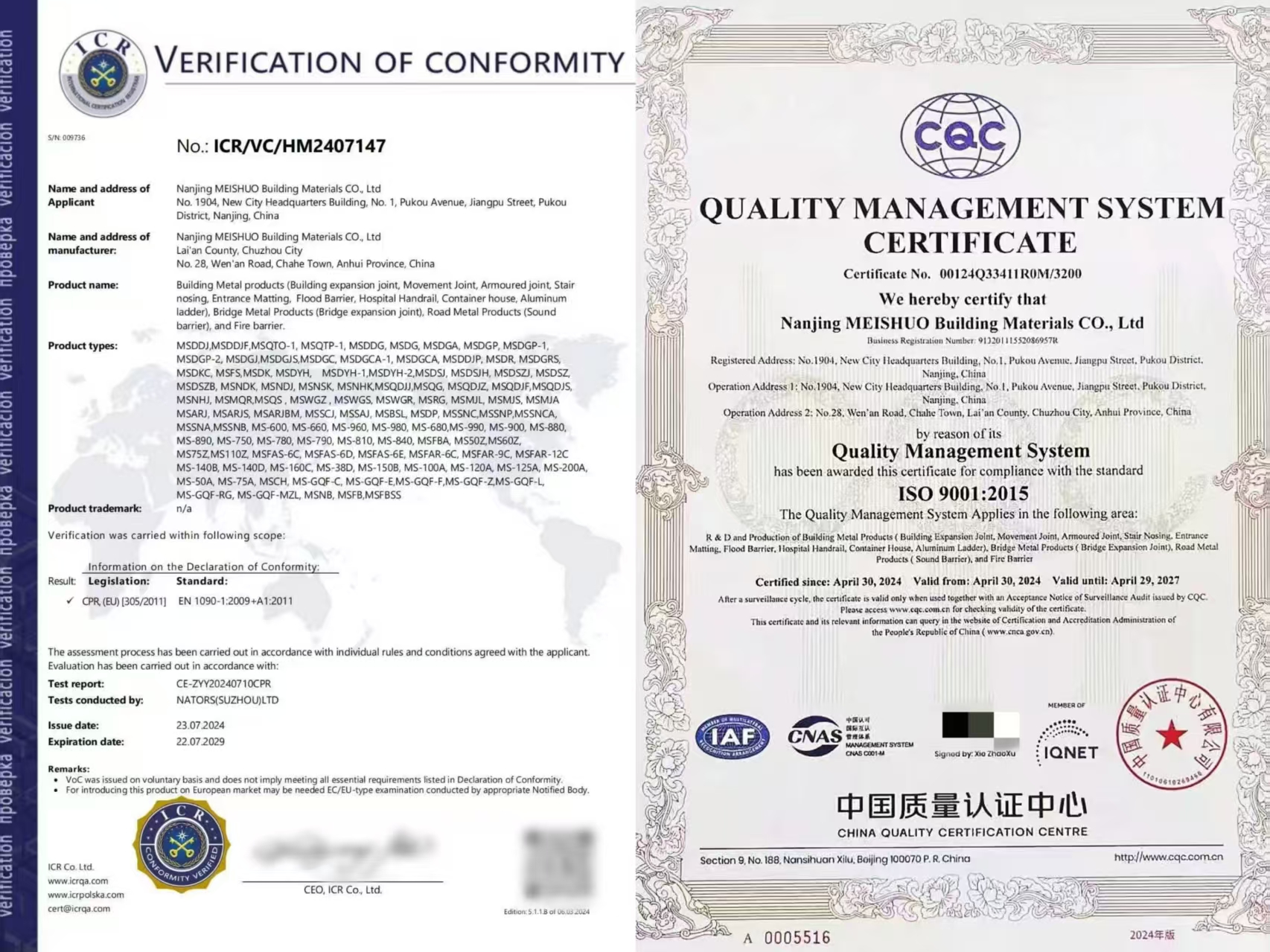

✅ CE & ISO 9001 Certified | BSI PAS 1188-4 Tested
✅ Factory Direct, Premium Quality, Fair Price
✅ High-Strength Aluminum & Removable & Rapid Deployment
✅ Customizable Sizes Depending on Your Needs
✅ Serving 120+ countries across EU, Asia, and ME since 2010
Our engineers typically respond within 2 hours.

Availability:
Quantity:
  • MSFB35T

  • 15$

  • Building Entrances/Loading Docks/Parking Ramps/Utility Facilities

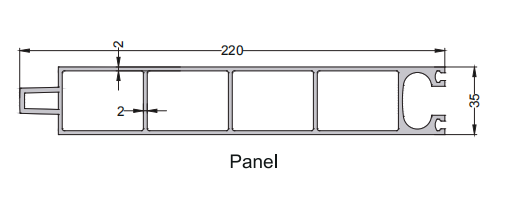

  • 35mm

  • 220mm

  • 2mm

  • 2000mm

  • 2500mm(1m depth)

  • Aluminum Alloy, Rubber, SST

High-Performance Construction

Our aluminum alloy flood barriers are engineered for reliable, rapid deployment to protect buildings, utilities, and assets from flood damage. Constructed from heavy-duty 6063-T5 aluminum for exceptional strength and corrosion resistance.

Independently Certified

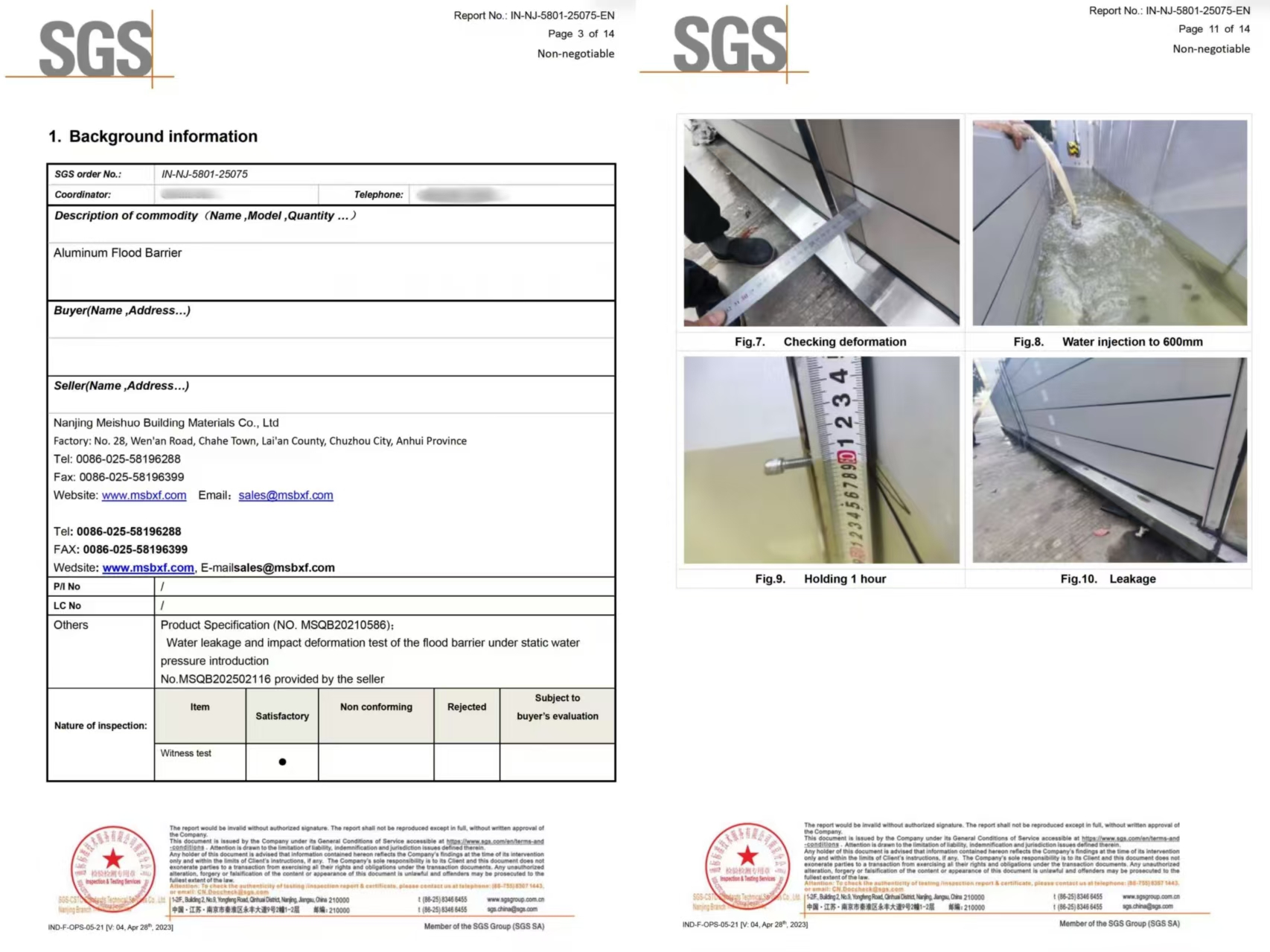

All products are CE certified and comply with the BSI PAS 1188-4:2014 standard. Our barriers have been validated through third-party engineering assessments and proven effective in real-world flood scenarios.

Superior Watertight Seal

Features a EPDM rubber gasket that delivers excellent waterproofing and airtight sealing, preventing water ingress even under pressure. The compression seal adapts to minor surface irregularities for maximum effectiveness.

Rapid Deployment

Designed for quick, straightforward installation when flooding is forecast. Panels insert easily into pre-installed posts and secure firmly with minimal on-site adjustment. The modular, lightweight design enables fast setup by a small crew.

Fully Customizable

We provide site-specific flood defense solutions tailored to your exact requirements. Our engineers assess your location and recommend the optimal mounting method.


6微信图片_20260423134922_690_16

photobankfotor_2026-1-20_15_3_54

345

[ 1 ] Installation Steps

  1. Determine post positions and measure.

  2. Drill holes with a hammer drill, then bolt U‑channel posts permanently on both sides.

  3. Insert panels, stack to height, and secure with the included Allen wrench.

[ 2 ] Installation Methods

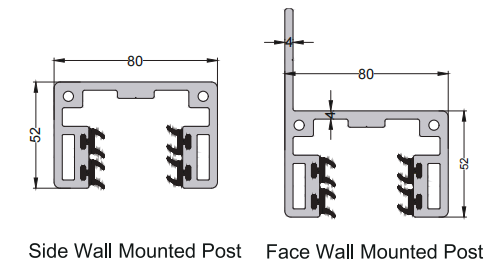

• Side Wall Mount: Posts are mounted on the side walls of the opening. Minimum wall depth: d≥10cm. Ideal for standard doorways.

• Face Wall Mount: Posts are mounted on the face of the wall around the opening. Minimum wall thickness: d≥10cm. Suitable for flush mounting applications.

• Corner Mount: Posts are anchored to both the face and side walls for enhanced stability. Provides a flexible solution for complex architectural layouts.

[ 3 ] Pro Tips

• Permanently Installed Posts: Once mounted, posts remain in place year‑round for immediate deployment.

• Flexible Mounting Choices: Select the method best suited to your wall configuration and flood risk.

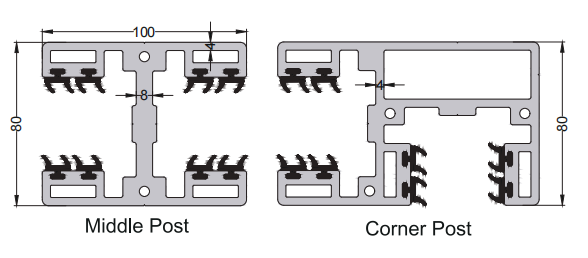

• In‑Ground Anchors Available: Optional anchors can be installed for center or corner post support in wider openings.
