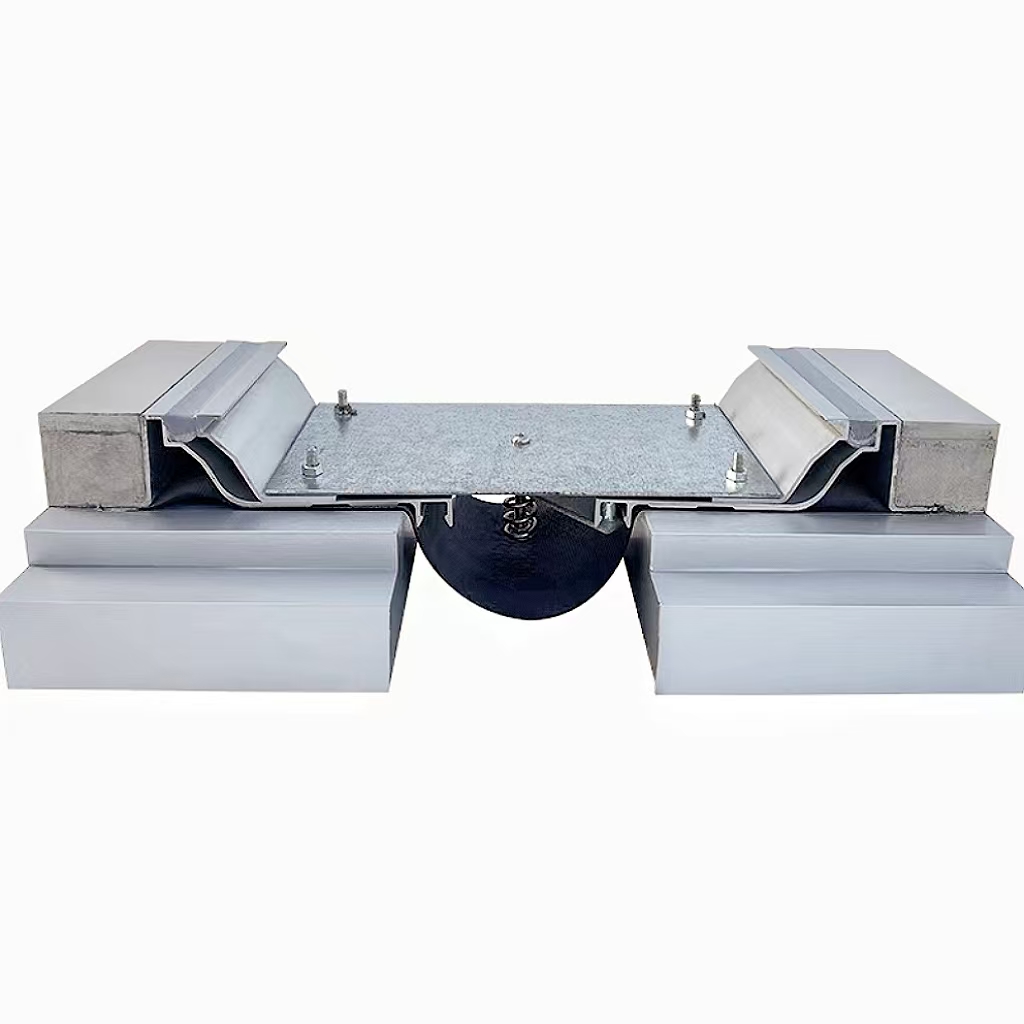

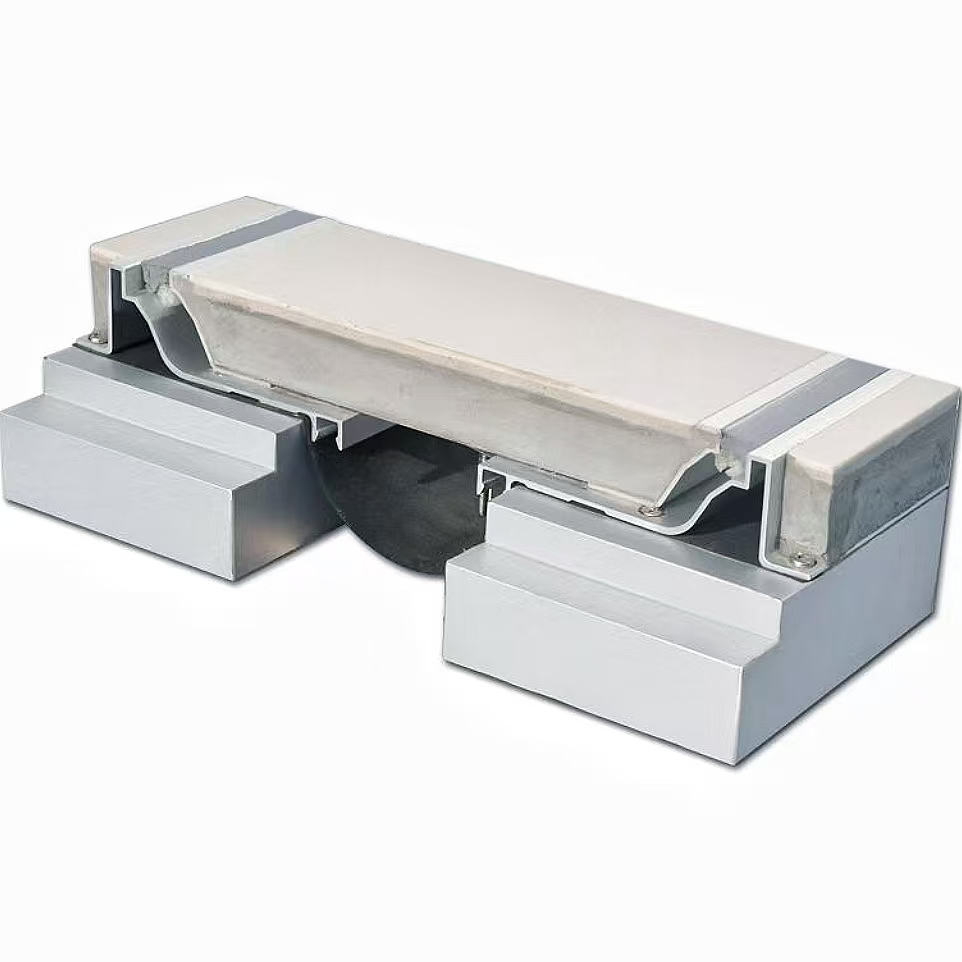

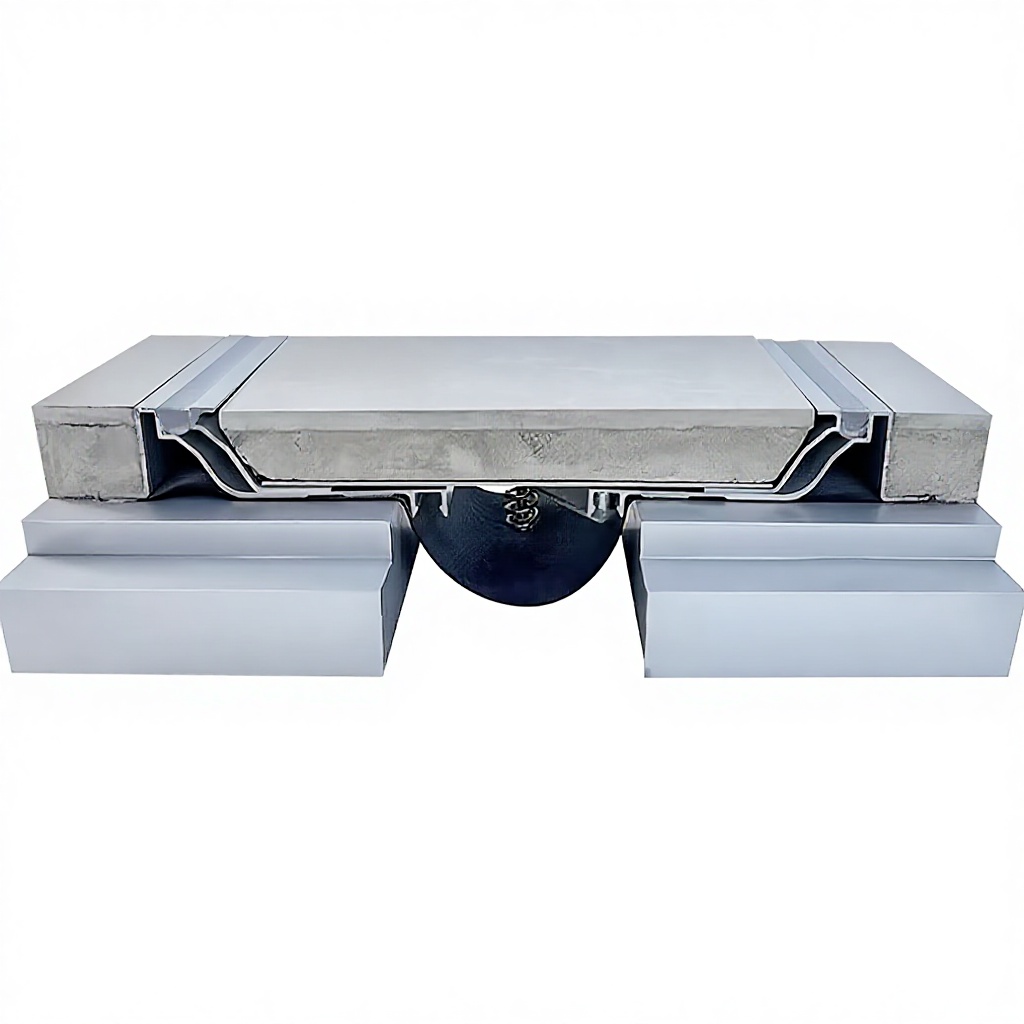

Seismic Floor Movement Joints MSDSZ

Advantages
POP UP System with Seismic Re-Centering: Integrated centering bar and compression spring assembly automatically reposition the pan after seismic movement, ensuring long-term alignment and performance.
Zero Sight Line: Only two subtle rubber strips remain visible after installation — a flush, elegant finish highly preferred by interior designers. Engineered for high-grade marble, granite, limestone, and paver floors, blending harmoniously with surrounding luxury surfaces.
Silicon Sealant Matches Grout Lines: Color-matched silicon sealant system integrates seamlessly with grout lines in different floor designs, preserving visual continuity.
Seismic & Vibration Control Option: Configurable with shock-absorbing features for earthquake-prone areas, protecting both structure and finish during ground movement.
Adaptable to Various Joint Widths: Flexible design accommodates a range of joint widths while maintaining a clean, unobtrusive surface appearance.
Limitations
Limited Weather Resistance of Elastomeric Filler: The elastic gel filler has moderate weatherability. Over time, as the gel ages, a visible crack may develop between the base and the filler under tension, affecting the aesthetic appearance.
Limited Movement Capacity: When the rubber strips are compressed or stretched, they may bulge or sink, creating an uneven surface that detracts from appearance. This effect becomes more pronounced with wider strips required for larger movements.
Lower Durability Than Metal: Rubber strips have a shorter service life and typically need replacement after a few years of use.
Our engineers typically respond within 2 hours
Availability:
Quantity:
  • MSDSZ

  • Recessed Mounted

  • Free

  • Yes

  • Optional

  • Yes

  • Pedestrian

  • Malls/Airports/Hospitals/Industrial/ Parking/Walkways

  • 75-500mm

  • 283-708mm

  • 60mm

  • Floor to Floor

  • Aluminum Alloy, Rubber

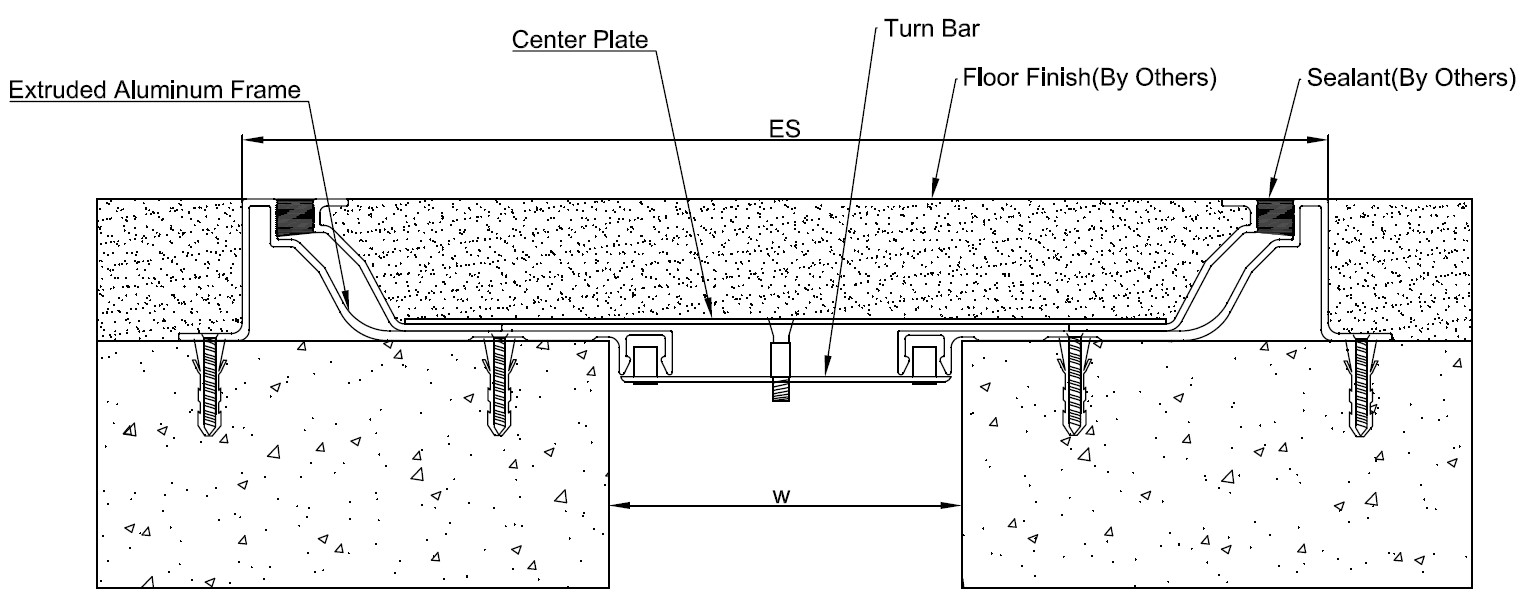

photobank (3)

MSDSZ
Joint Width(W)(mm)
75 100 150 200 250 300 350 400 450 500
Exposed Surface(ES)(mm) 283 308 358 408 458 508 558 608 658 708
Movement Capacity(mm) 60 60 60 60 60 60 60 60 60 60
Width of Plate(mm) 190 215 265 315 365 415 465 515 565 615
Thickness of Plate(mm) 1.5 1.5 2 2 3 3 3 5 5 5
