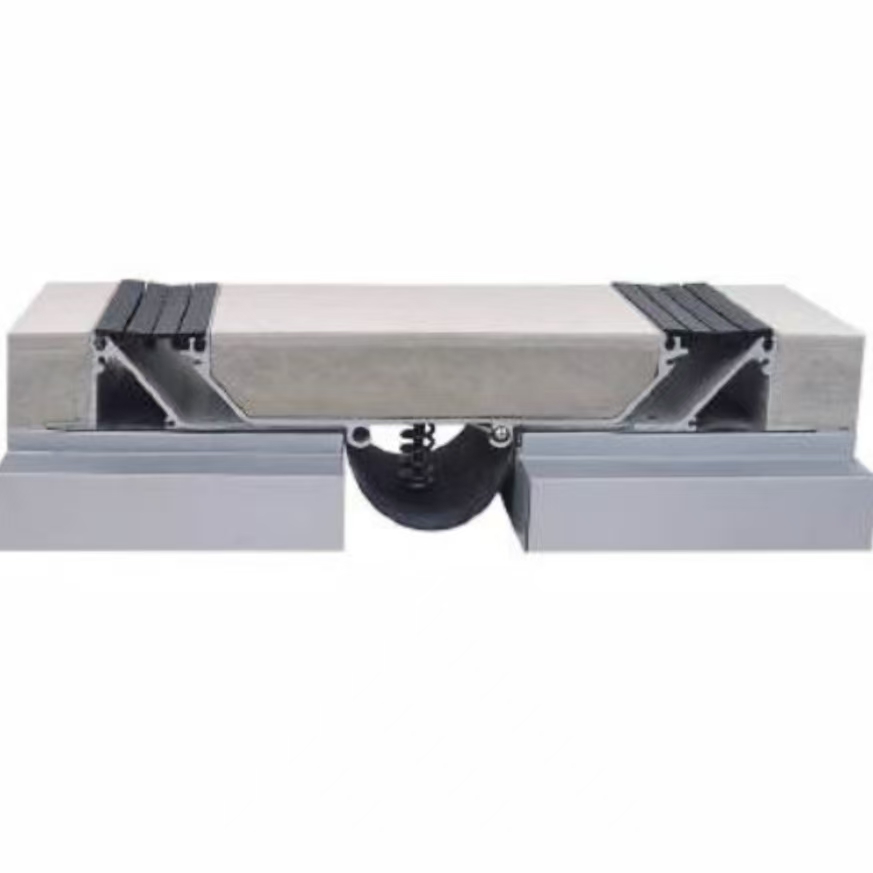

Seismic Frie-Rated Expansion Joint Covers MSDSZH

Anti slip grooves make the connection between screed and aluminum base much more stronger in case the decorative level will get off easily.
Round aluminum bearing allows cover to move smoothly and easy to protect system when expansion and compression.
Modular pan's design eliminates deflection and cracking. It's better for loading and connection of the whole system.
Exclusive edge protection eliminates chipping and cracking of pavers.
Special design for big movement inquiry.
Our engineers typically respond within 2 hours
Availability:
Quantity:
Inquire

  • MSDSZH

  • Recessed Mounted

  • Free

  • Yes

  • Optional

  • Yes

  • Pedestrian

  • Malls/Airports/Hospitals/Industrial/ Parking/Walkways

  • 100-500mm

  • 406-805mm

  • 150-565mm

  • Floor to Floor

  • Aluminum Alloy, Rubber

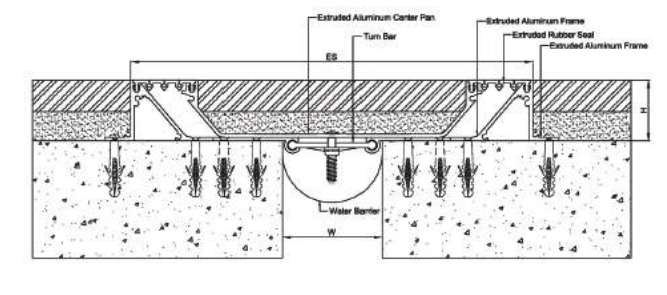

MSDSZH

MSDSZH
Joint Width(W)(mm)
 100 150 200 250 300 350 400 450 500
Exposed Surface(ES)(mm) 406 455 505 555 605 655 705 755 805
Movement Capacity(mm) 150 215 275 315 365 415 465 515 565


QQtupian20注: 建议上传图片大小690px*460px
  • CE & ISO 9001
  • ASTM 6063 T5
  • ASTM D 2047
  • ASTM D412
  • ASTM D573
  • ASTM D624
  • ASTM D1415
  • ASTM E1966
  • Loading Test
  • ASTM B221
  • ASTM E1399
  • ASTM E119

IMG_7826(1)(1)QQ图片20200726212132（1）IMG_4248(1)IMG_4301(1)

Related Products

Earthquake-Resistant Floor to Wall Joints MSD-QSZJ
Earthquake-Resistant Floor to Wall Joints MSD-QSZJ
MEISHUO Fire-Rated Seismic Joints
Fire-Rated Seismic Joints MSDSZJ
Aesthetic Aluminum Cover Expansion Joints MSDSJ
Aesthetic Aluminum Cover Expansion Joints MSDSJ
Expansion Joints with Rubber Strips MSDSJH
Expansion Joints with Rubber Strips MSDSJH
Lock Metal Expansion Joint Covers MSDK
Lock Metal Expansion Joint Covers MSDK
Snap-Fit Floor Expansion Joint Cover MSDSJ-1
Snap-Fit Floor Expansion Joint Cover MSDSJ-1

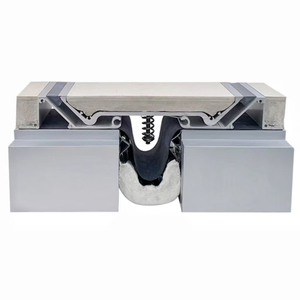

Flush Seismic Expansion Joint Cover MSDSZB
Flush Seismic Expansion Joint Cover MSDSZB

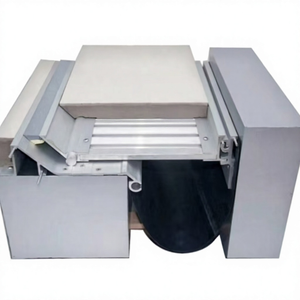

Seismic Floor to Wall Expansion Joint Cover MSD-QSZB
