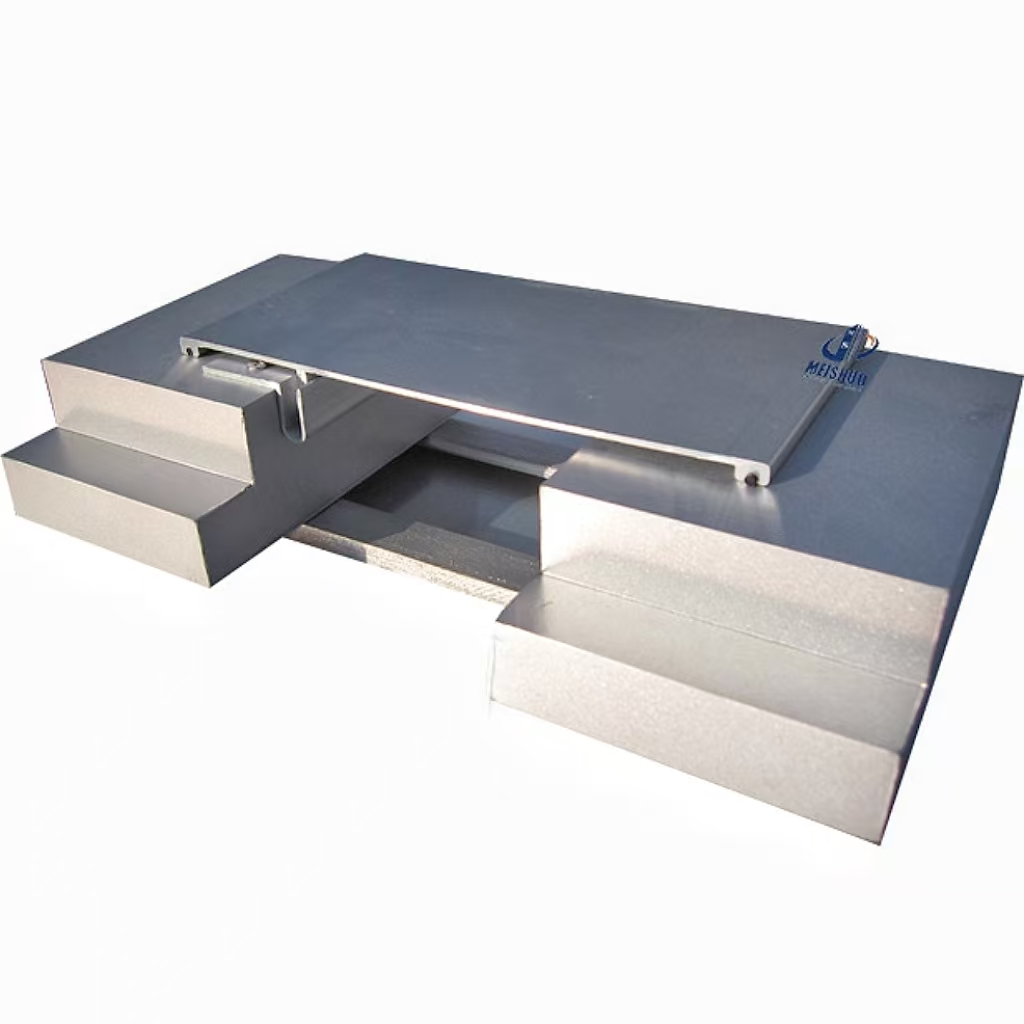

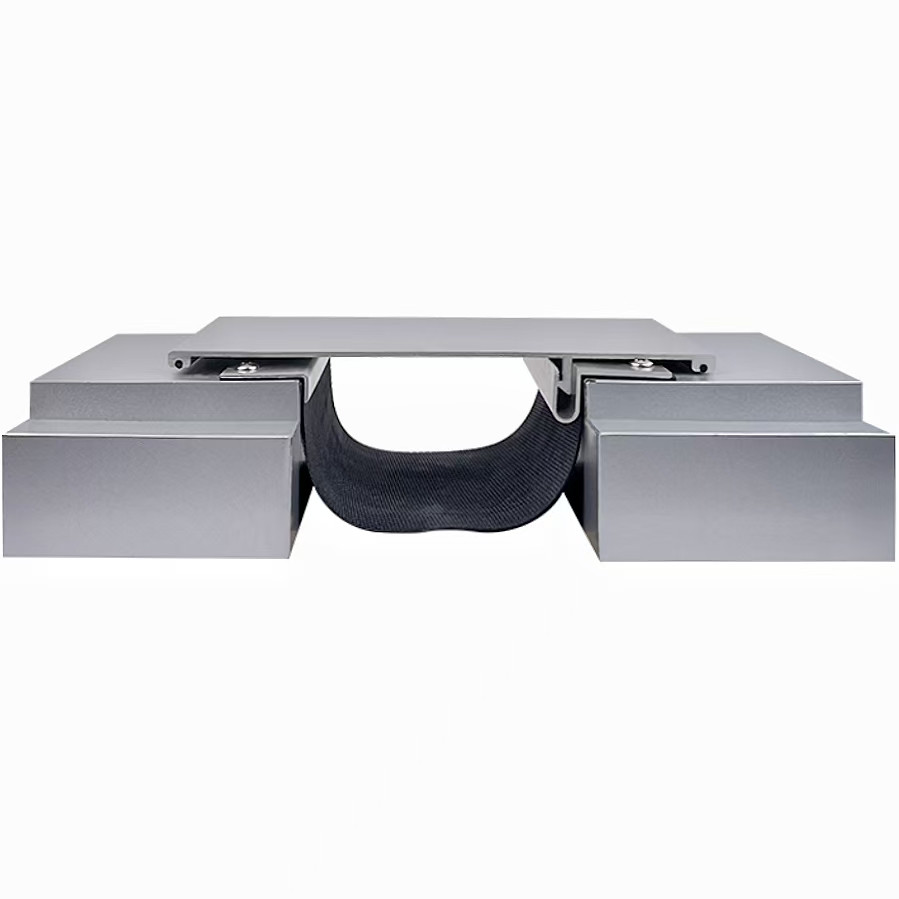

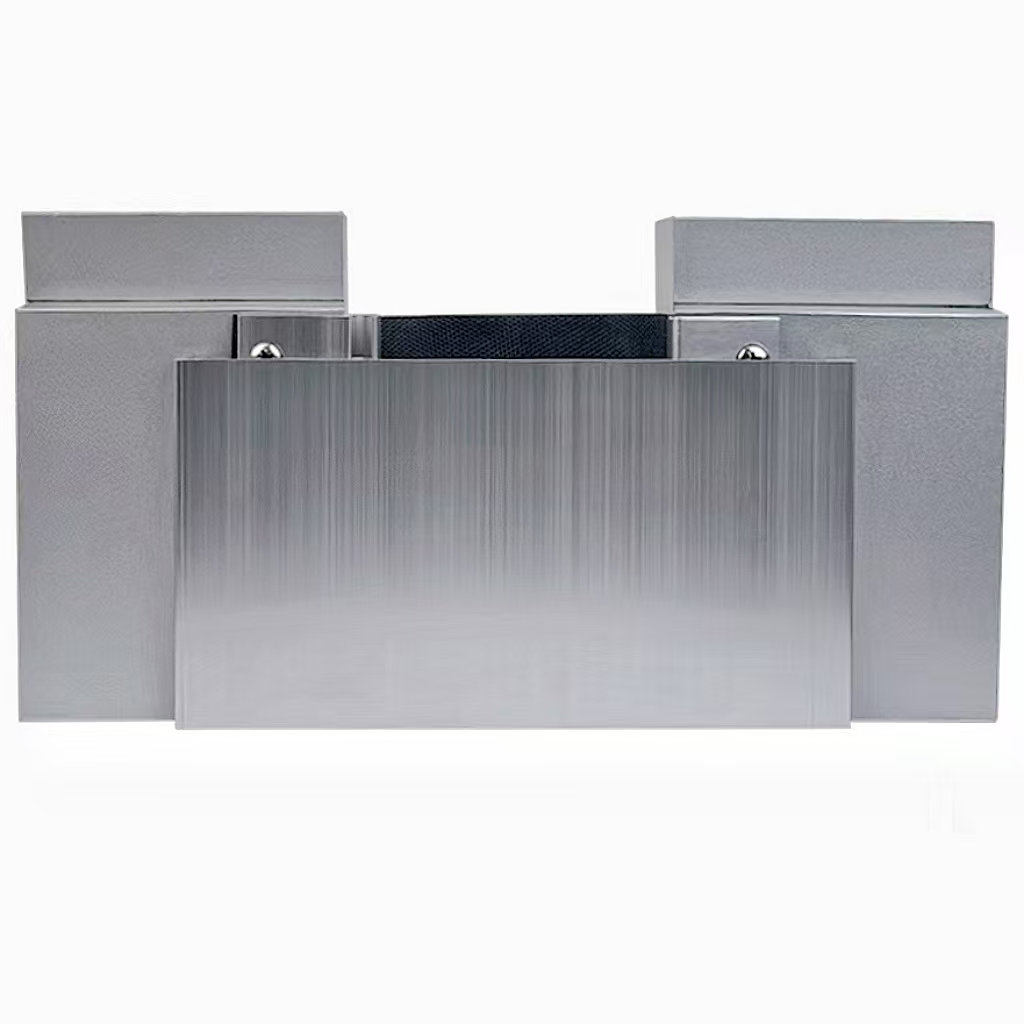

Single Locking Interior Wall Expansion Joints MSNDK

Advantages
Aesthetic when properly installed: Provides a clean, attractive finish provided the joint width and substrate flatness meet the required standards.
Easy installation
Cost‑effective
Limitations
Limited joint width range: Suitable only for joint widths up to 250 mm.
Extremely high substrate flatness requirement: Demands a very level and even base, making it less versatile than double‑locking systems.
Poor performance at corner joints: When installed at corners, the fixing screws often fall on the junction between filler beam and wall, resulting in difficult anchoring and reduced stability.
Our engineers typically respond within 2 hours
Availability:
Quantity:
Inquire

  • MSNDK

  • Recessed Mounted

  • Optional

  • Optional

  • Pedestrian

  • Free

  • Malls/Airports/Hospitals/Industrial/ Parking/Walkways

  • No

  • 50-200mm

  • 150-300mm

  • 130-280mm

  • Aluminum Alloy, Rubber

  • Interior Wall, Ceiling

photobank (3)

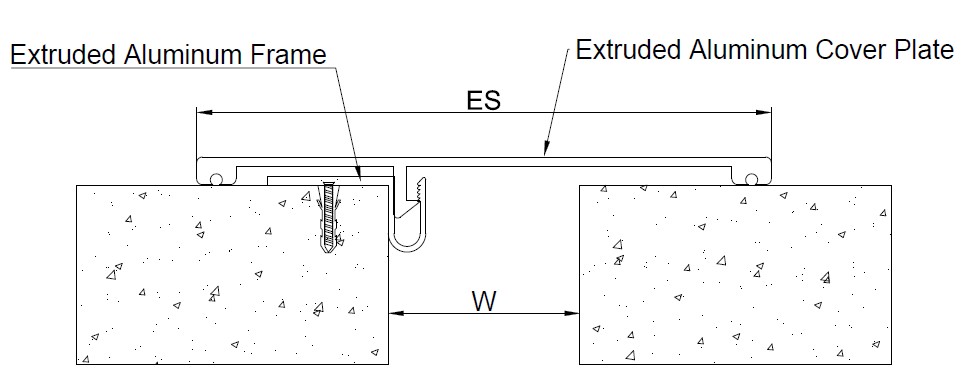

MSNDK
Joint Width(W)(mm)
 50 100 150 200
Exposed Surface(ES)(mm) 150 200 250 300
Movement Capacity(mm) 130 180 230 280


QQtupian20注: 建议上传图片大小690px*460px
  • CE & ISO 9001
  • ASTM 6063 T5
  • ASTM D 2047
  • ASTM D412
  • ASTM D573
  • ASTM D624
  • ASTM D1415
  • ASTM E1966
  • Loading Test
  • ASTM B221
  • ASTM E1399
  • ASTM E119

QQ图片20200726205431IMG_7025(1)(1)
