Armoured Joints-leave Inplace Joint Systems

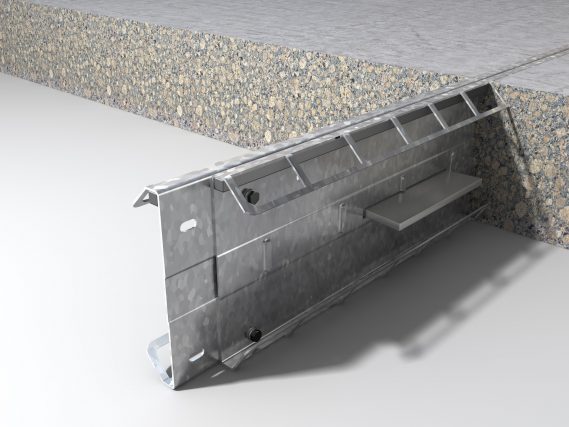

Prefabricated leave-in-place joint system designed to build formed free-movement joints, consisting of heavy-duty arris armoring, permanent formwork and a load transfer system. It is suitable for all large-area construction methods for ground-bearing and pile-supported concrete floors.
Quantity:
Inquire Add to Basket

  • MSDDS

  • MEISHUO

  • HS:7604299000

Armoured Joints-leave Inplace Joint Systems

 Application

• Prefabricated leave-in-place free movement joint system with a variety of integral load transfer mechanisms to suit all floor loadings.
• Excellent performance with 40mm x 10mm cold drawn steel for extreme armoring of joint arrises.
• Specially designed for moderate and medium loads
• Strong model is specially developed to meet heavy duty requirements
• Suitable for the high flatness category floor and superflat floor construction.
• Fast track installation with a selection of fixing methods and accessories.
• All materials used in this product are 100% recyclable.

Benifits

Meishuo Armoured Joint  is the industry standard in the range of prefabricated heavy-duty movement joint systems for high flatness category industrial floors. It transfers vertical loads between adjacent slabs and minimizes the vertical displacement of the slabs. The load transfer system is accomplished by utilizing high-strength steel discrete plate dowels, moving within rigid plastic release sleeves. The cold drawn steel rails provide extremely durable protection to the slab arrises, making it ideal for floors in a heavy-duty traffic environment.

It is the industry standard in the range of prefabricated heavy-duty movement joint systems for high flatness category industrial floors. It transfers vertical loads between adjacent slabs and minimizes the vertical displacement of the slabs. The load transfer system is accomplished by utilizing high-strength steel discrete plate dowels, moving within rigid plastic release sleeves. The cold drawn steel rails provide extremely durable protection to the slab arrises, making it ideal for floors in a heavy-duty traffic environment.
The system ensures reliable load transfer in formed free-movement joints with openings up to 15 mm wide, and it is suitable for slab depths from 100 mm to 300 mm. It can be supplied with different types of plate dowel systems. It is available in plain steel, hot-dip galvanized finish or stainless steel, which means that the system offers a solution for all operational environments.



Projects                                                                                                                      MSARJ Project (8)MSARJ (1)MSARJ Project (19)
