Simplified installation: Fewer on-site coordination steps; the system can be installed in a single pass.
Flush finish: The surface aligns perfectly with the surrounding floor and wall finishes, providing a seamless appearance. The center cover plate is recessed into the base, allowing the cover edges to be left un‑chamfered.
Wide material and size options: A broad selection of cover plate materials and dimensions is available to match architectural requirements. The system works effectively with a range of structural gap widths.
Debris accumulation: The recessed gap between the base and the center cover plate can collect dust and dirt, making cleaning more difficult and potentially affecting aesthetics over time.
Visible gap at transitions: A small gap may appear between the base and the surrounding finished floor/wall, requiring attention during detailing.
Our engineers typically respond within 2 hours
| Quantity: | |
|---|---|

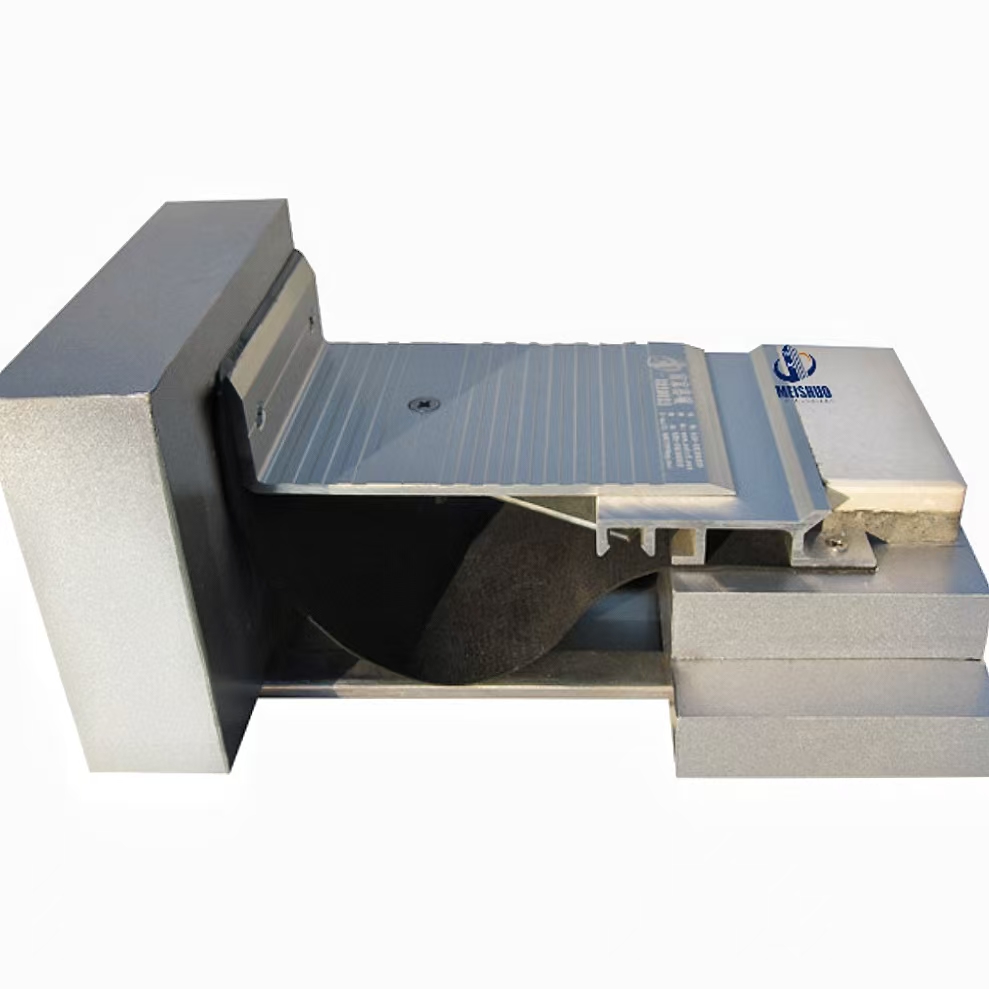

MSD-QGP
Recessed Mounted
Free
Optional
Yes
Pedestrian
Malls/Airports/Hospitals/Industrial/ Parking/Walkways
75-250mm
121-296mm
60mm
Floor to Wall
Aluminum Alloy, Rubber
| MSD-QGP | ||||||||

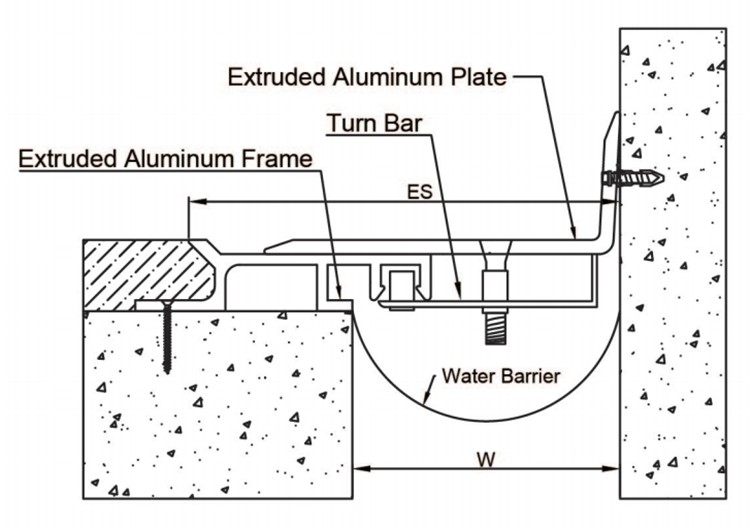

| Joint Width(W)(mm) | 75 | 100 | 125 | 150 | 175 | 200 | 250 | |
| Exposed Surface(ES)(mm) | 121 | 146 | 171 | 196 | 221 | 246 | 296 | |
| Movement Capacity(mm) | Total | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| + | 35 | 35 | 35 | 35 | 35 | 35 | 35 | |
| - | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| Wideness of Plate(mm) | 100 | 125 | 150 | 175 | 200 | 225 | 275 | |
| Thickness of Plate | 4 | 4 | 4 | 4 | 4 | 5 | 5 | |
| Load Capacity(KN) | 25 | 20 | 15 | 10 | 10 | |||
