Standard Metal Floor Expansion Joint Cover MSD-QG

Share to:

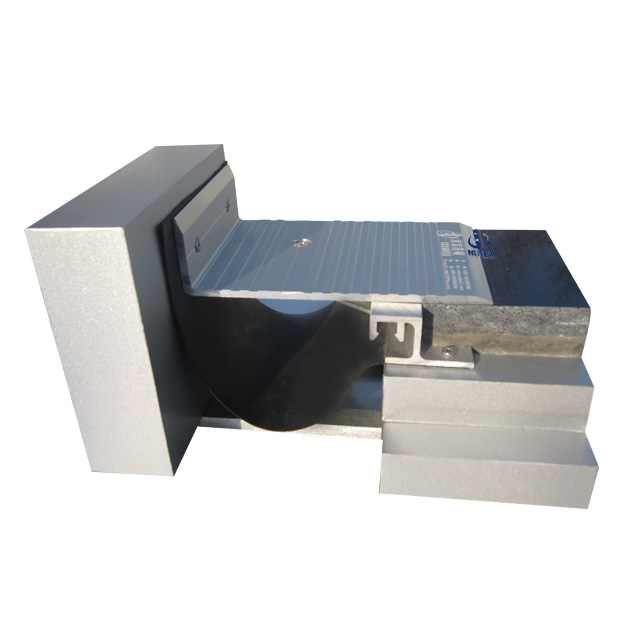

Standard Metal Floor Expansion Joint Cover MSD-QG

Advantages

Slip-resistant surface: Equipped with anti-slip tread patterns for enhanced safety performance.

High-quality appearance: Provides a premium, refined look that coordinates well with various finishes.

Clean aesthetic: After installation, the contact area between the substrate and the finished floor remains concealed even during structural movement, ensuring a neat and seamless appearance.Cost-effective: Offers good value for money under standard applications.

Limitations

Higher cost for wider widths: As a fixed-profile system, when the cover plate width exceeds 300 mm, the plate thickness must increase accordingly, resulting in higher material costs - reducing cost-effectiveness in such cases.

More complex installation sequence: Installation involves multiple coordinated steps. The base must be installed first, followed by the surrounding finished floor, with the cover plate installed only after both are completed.

Our engineers typically respond within 2 hours

Availability:

Quantity:



Inquire

Model:
MSD-QG
Installation:
Recessed Mounted
Sample:
Free
Fire-Rated:
Optional
Waterproof:
Yes
Loading:
Pedestrian
Suitable for:

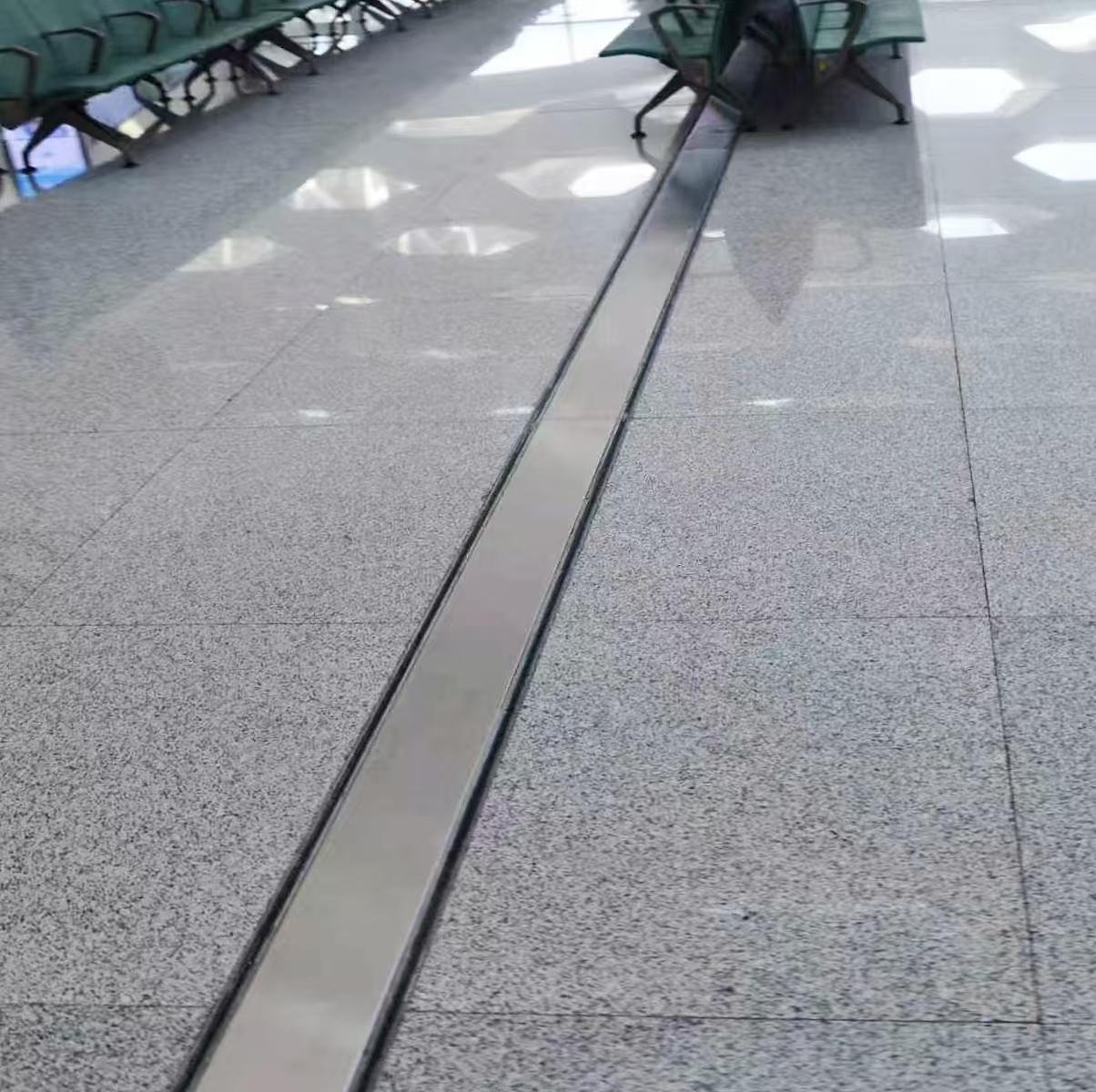

Malls/Airports/Hospitals/Industrial/ Parking/Walkways
Joint Width:
50-175mm
Exposed Surface:
100-200mm
Movement Capacity:
70-170mm
Application:
Floor to Wall
Material:
Aluminum Alloy, Rubber

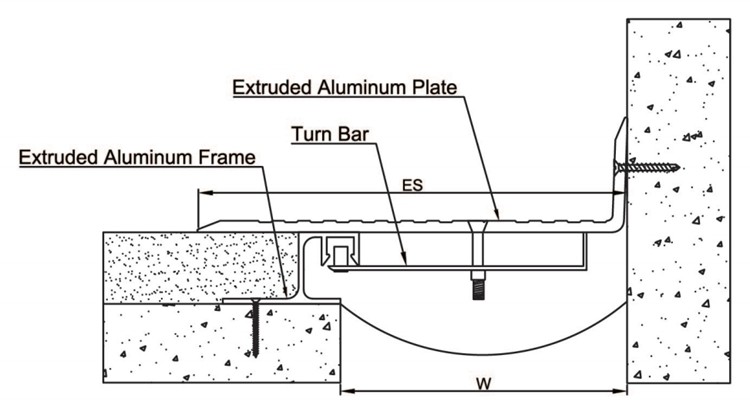

photobank

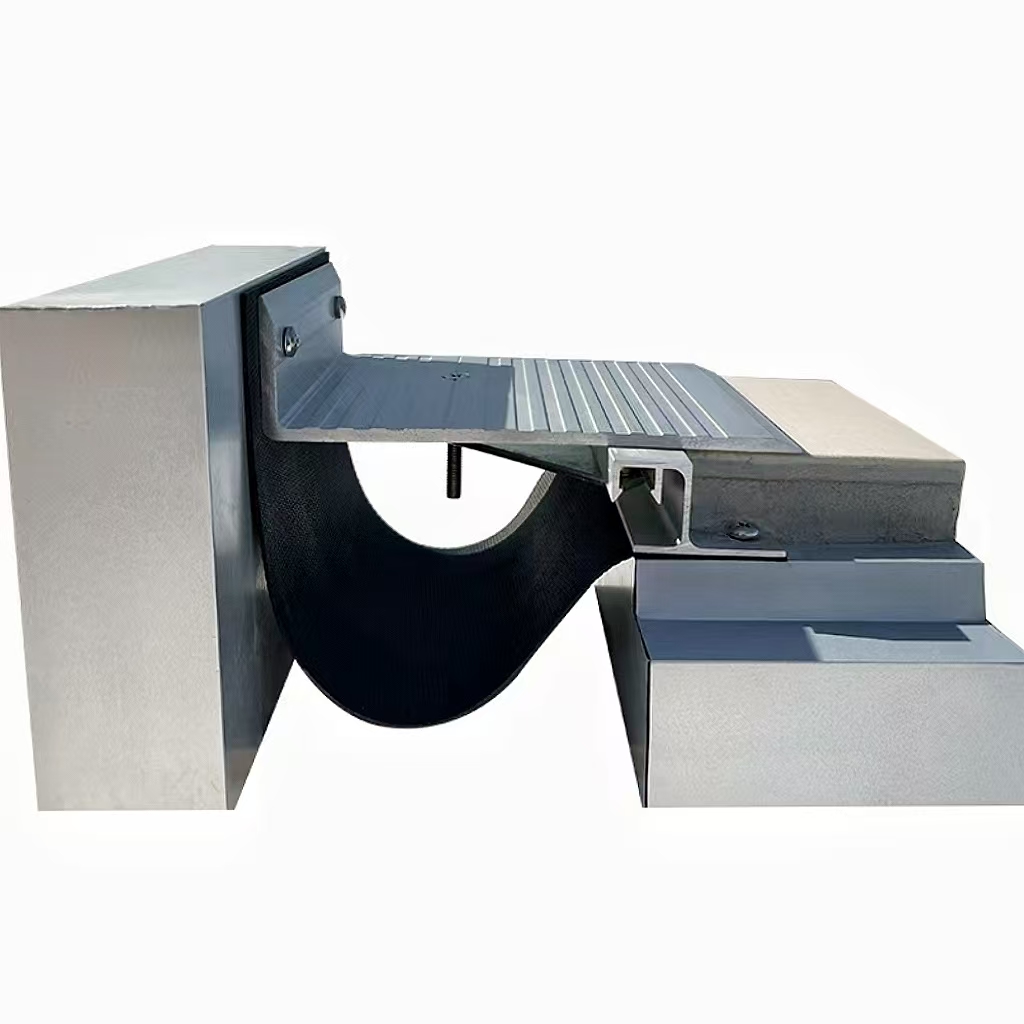

MSD-QG
Joint Width(W)(mm)		50	75	100	125	150	175
Exposed SurfaceI(ES)(mm)		100	150	150	200	200	200
Movement Capacity(mm)	Total	70	125	125	175	175	170
	+	50	80	55	80	55	25
	-	20	45	70	95	120	145
Wideness of Plate(mm)		150	150	150	200	200	200
Thickness of Plate(mm)		4	4	4	4	4	4
